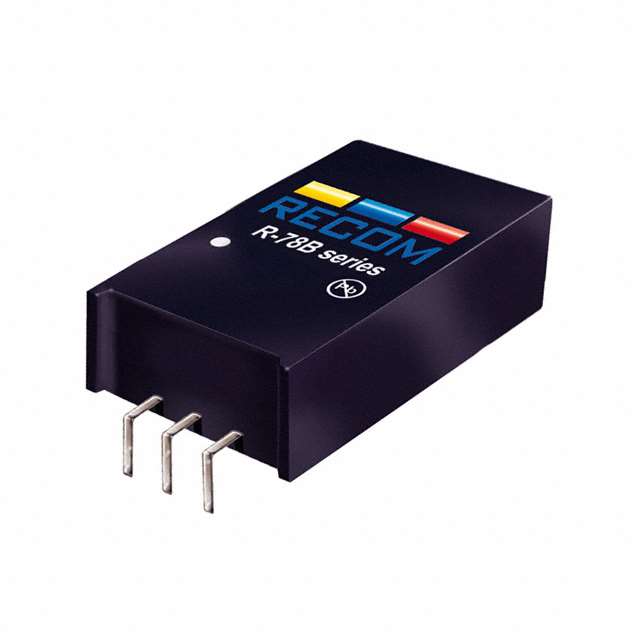

R-78B2.5-1.5L

Module DC-DC 1Out 2.5V 1.5A 3Pin SIP Tube

Description

The R-78Bxx-1.5 Series high efficiency switching regulators are ideally suited to replace 78xx linear regulators and are pin compatible. The efficiency of up to 95% means that very little energy is wasted as heat so there is no need for any heat sinks with their additional space and mounting costs. The L-Version with 90° pins allows direct replacement for laid-flat regulators where component height is at a premium.Low ripple and noise figures and a short circuit input current of typically only 10mA round off the specifications of this versatile converter series.

Features

● Efficiency up to 95%,Non isolated, no need for heatsinks

● Pin-out compatible with LM78XX Linears

.

W*H=11.5*8.5*17.5mm

● Wide input range.4.75V ~ 18V

● Short circuit protection, Thermal shutdown

● Non standard outputs available as specials between 1.5V ~ 6.5V

● Low ripple and noise

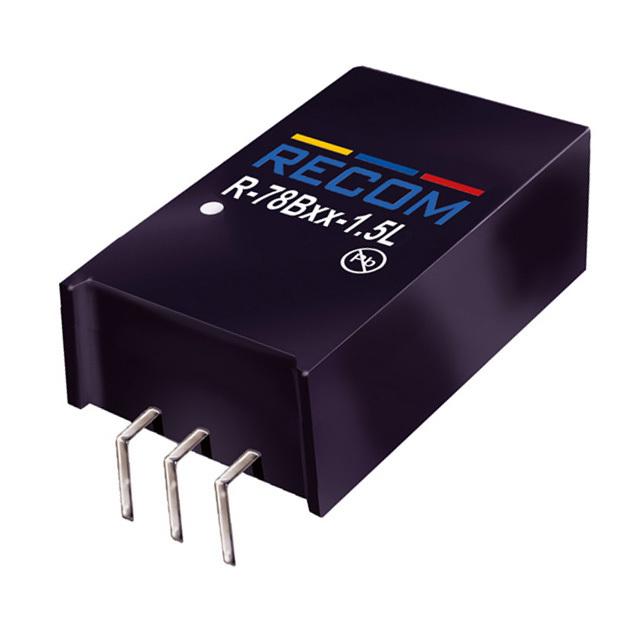

● “L” Version with 90° pins
