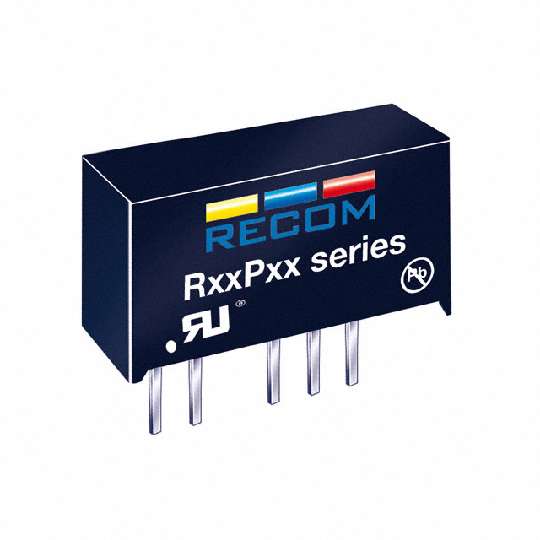

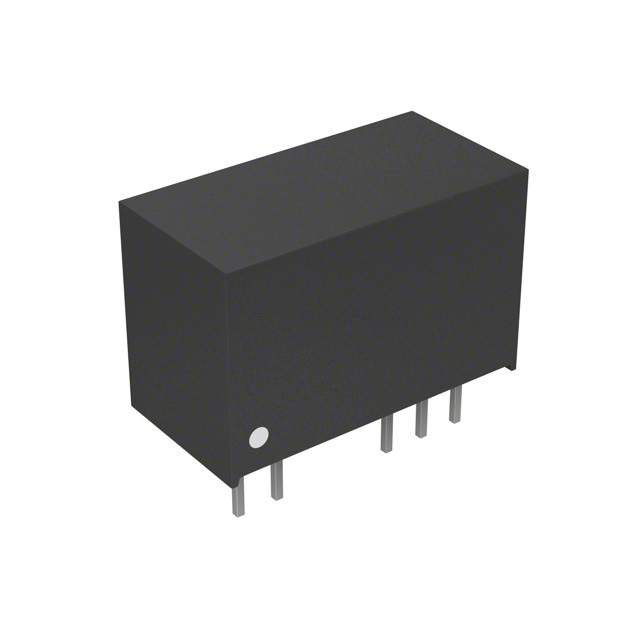

R05P09D

1W 隔离式直流-直流转换器 / Vout ±9V, ±55mA 15%负载调节 1 %, 1.2 %线路调节

The new DC/DC converters have been designed to supply IGBT drivers. They provide an asymmetric output of +15 VDC and –9 DCV with input voltages of 5 VDC, 12 VDC or 24 VDC. The converters offer high isolation and an extended operating temperature range.

* UL/CSA and EN Safety Certified

* EN-60601 for Medical Applications

* Isolation 6.4 kVDC

* /X2 Option for >9 mm Input/Output Clearance

* Suitable for IGBT Applications

* Optional Continuous Short Circuit Protected
