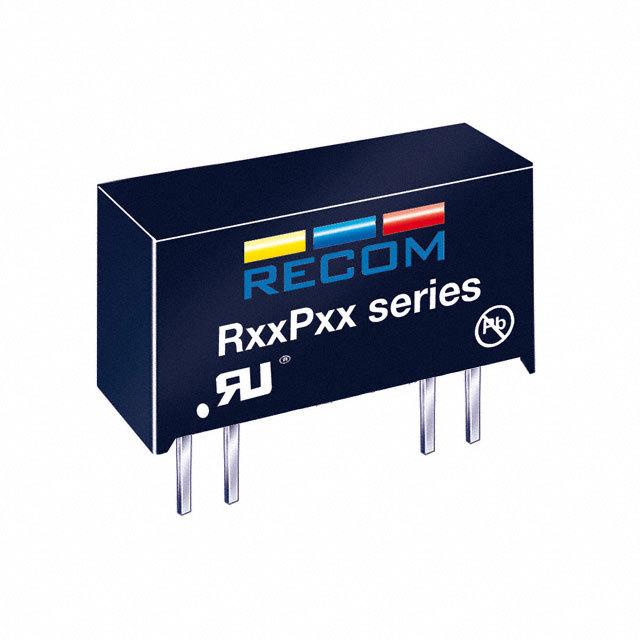

CONVERTER DC-DC 15Vin 5Vout 1W
Description
The RxxPxxS_D Series of DC/DC Converters are certified to UL/CSA-60950 as well as EN60950 and EN60601. This makes them ideal for medical and safety applications where approved isolation is required.
Features
● UL/CSA and EN Safety certified
● EN-60601 for Medical Applications
● Isolation 6.4kVDC
● Optional Continuous Short Circuit Protected
● /X2 Option for >9mm Input/Output Clearance
● Suitable for IGBT Applications
得捷:
DC DC CONVERTER 5V 1W
贸泽:
Isolated DC/DC Converters 1W 15VIN 05VOUT CONT SHORT CIR PRTCT
艾睿:
Module DC-DC 15VIN 1-OUT 5V 0.2A 1W 4-Pin SIP Module Tube
额定功率 1 W
输出接口数 1
输出电压 5 V
输出电流 0.2 A
输出功率 1 W
隔离电压 6.4 kV
开关频率 85 kHz
输入电压Max 16.5 V
输入电压Min 13.5 V
输出电流Max 200 mA
额定功率Max 1 W
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 15 V
安装方式 Through Hole
引脚数 4
封装 SIP-7
长度 19.5 mm
宽度 9.8 mm
高度 12.5 mm
封装 SIP-7
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
制造应用 ITE（商业），医疗
RoHS标准 RoHS Compliant
含铅标准 Lead Free
