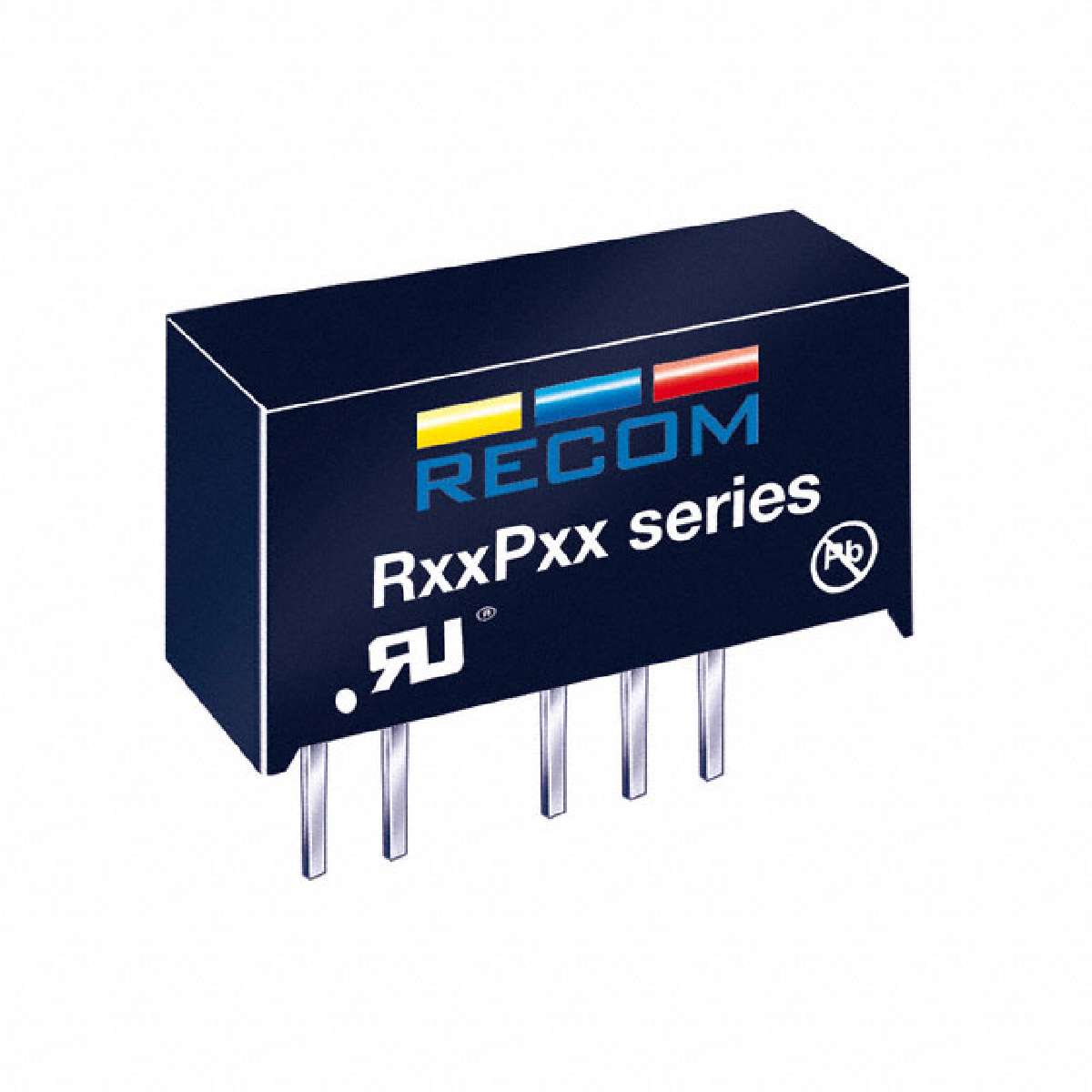

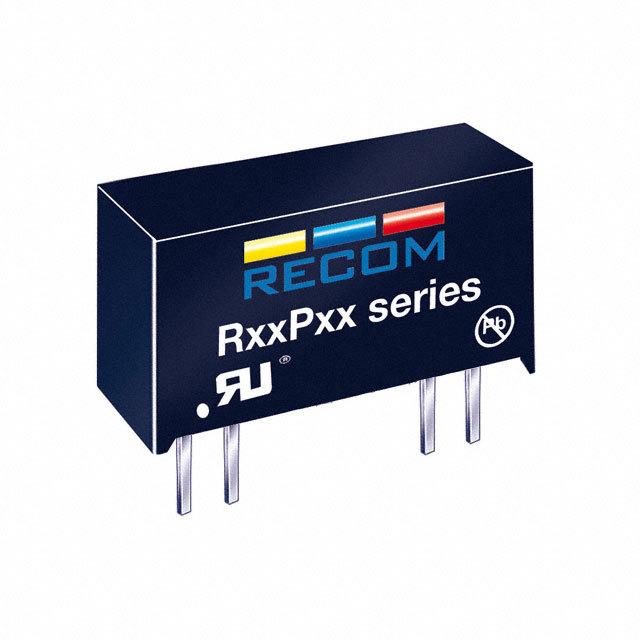

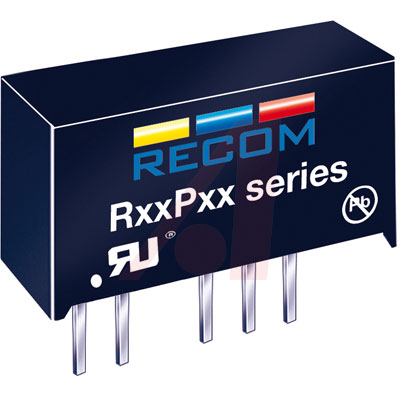

隔离式DC/DC转换器 1W 5VIN +15/-9V THT SHORT CIRCUIT PROTEC
The new DC/DC converters have been designed to supply IGBT drivers. They provide an asymmetric output of +15 VDC and –9 DCV with input voltages of 5 VDC, 12 VDC or 24 VDC. The converters offer high isolation and an extended operating temperature range.
* UL/CSA and EN Safety Certified
* EN-60601 for Medical Applications
* Isolation 6.4 kVDC
* /X2 Option for >9 mm Input/Output Clearance
* Suitable for IGBT Applications
* Optional Continuous Short Circuit Protected
额定功率 1 W
输出接口数 2
输出功率 1 W
隔离电压 6.4 kV
输入电压Max 5.5 V
输入电压Min 4.5 V
输出电流Max 42mA, 42mA
额定功率Max 1 W
工作温度Max 90 ℃
工作温度Min -40 ℃
输入电压 4.5VDC ~ 5.5VDC
安装方式 Through Hole
封装 SIP-7
长度 19.5 mm
宽度 9.8 mm
高度 12.5 mm
封装 SIP-7
工作温度 -40℃ ~ 90℃
产品生命周期 Active
包装方式 Bulk
制造应用 ITE（商业），医疗
RoHS标准 RoHS Compliant
含铅标准 Lead Free
