FAIRCHILD SEMICONDUCTOR RURD660S9A 快速/超快功率二极管, 单, 600 V, 6 A, 1.5 V, 60 ns, 60 A
The is an Ultrafast Diode offers low forward voltage drop. This device is intended for use as freewheeling and clamping diodes in a variety of switching power supplies and other power switching applications. It is especially suited for use in switching power supplies application.
额定电压DC 600 V
额定电流 6.00 A
正向电压 1.5V @6A
热阻 3℃/W RθJC
反向恢复时间 60 ns
正向电流 6 A
最大正向浪涌电流(Ifsm) 60 A
正向电压Max 1.5 V
正向电流Max 6 A
工作温度Max 175 ℃
工作温度Min -65 ℃
安装方式 Surface Mount
引脚数 3

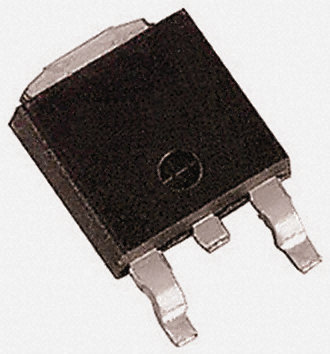

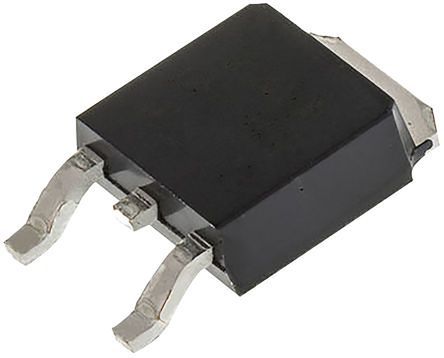

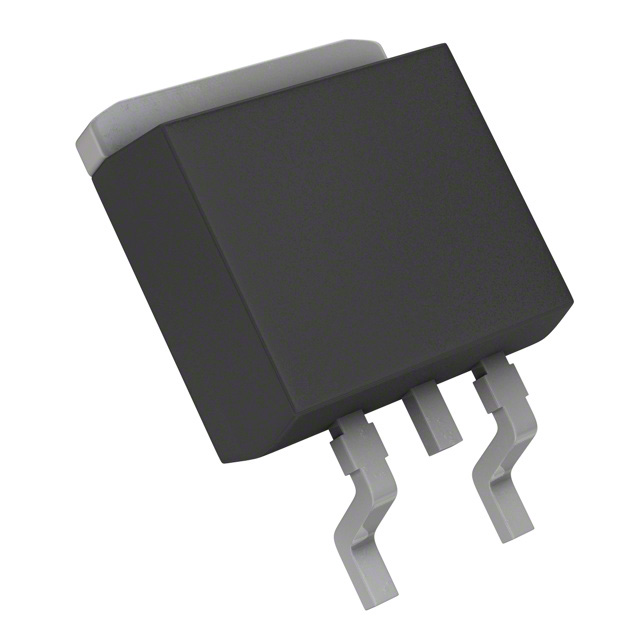

封装 TO-252-3
长度 6.73 mm
宽度 6.22 mm
高度 2.39 mm
封装 TO-252-3
工作温度 -65℃ ~ 175℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 Non-Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
RURD660S9A Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
RURD660S 飞兆/仙童 | 功能相似 | RURD660S9A和RURD660S的区别 |
