Conv DC-DC Single Step Down 10.8V to 13.2V 14Pin DIP Tube

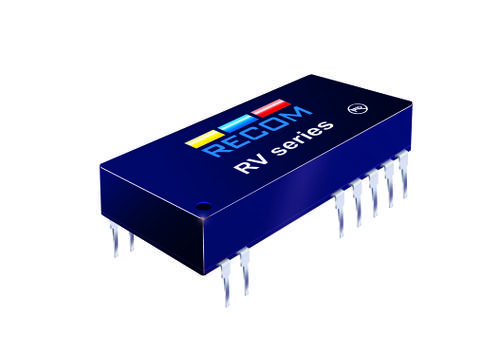

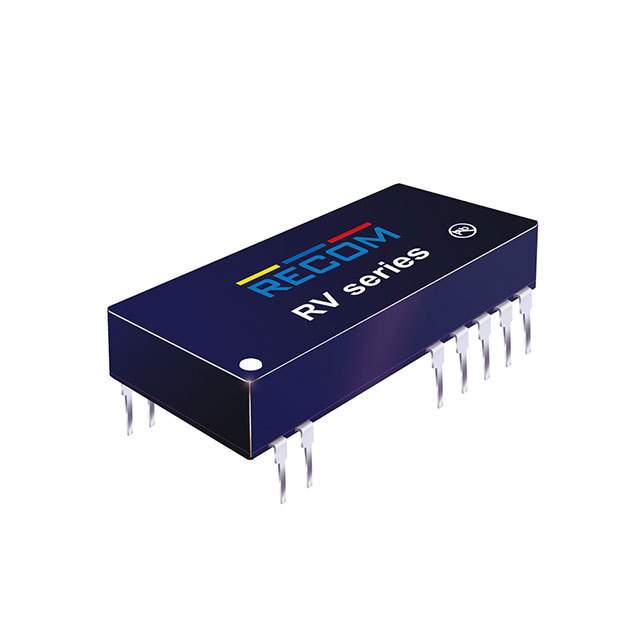

RV Series
2 Watt DIP24 Miniature Single & Dual Output
Features
Unregulated Converters
● Safety standards and approvals:
EN 60950 certified, rated for 250VAC LVD test report
● UL-60950-1 / CSA C22.2 certified
● 6kVDC Isolation
● UL94V-0 Package Material
● Optional Continuous Short Circuit Protected
● Fully Encapsulated
● Efficiency to 82%
得捷:
DC DC CONVERTER 3.3V 2W
Chip1Stop:
Conv DC-DC Single Step Down 10.8V to 13.2V 14-Pin DIP Tube
AMEYA360:
CONV DC/DC 2W 12VIN 3.3VOUT
额定功率 2 W
输出接口数 1
输出电压 3.3 V
输出功率 2 W
隔离电压 6 kV
输入电压Max 13.2 V
输入电压Min 10.8 V
输入电压DC Max 13.2 V
输入电压DC Min 10.8 v
输出电流Max 600 mA
输出功率Max 2 W
额定功率Max 2 W
输入电压 12V ~ 12V
安装方式 Through Hole
封装 DIP-24
宽度 14.7 mm
高度 11.1 mm
封装 DIP-24
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
制造应用 ITE（商业），医疗
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2014/06/16
