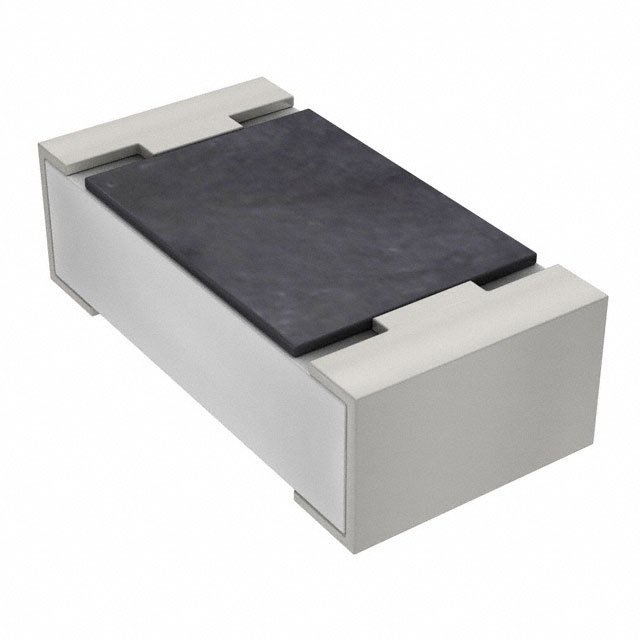

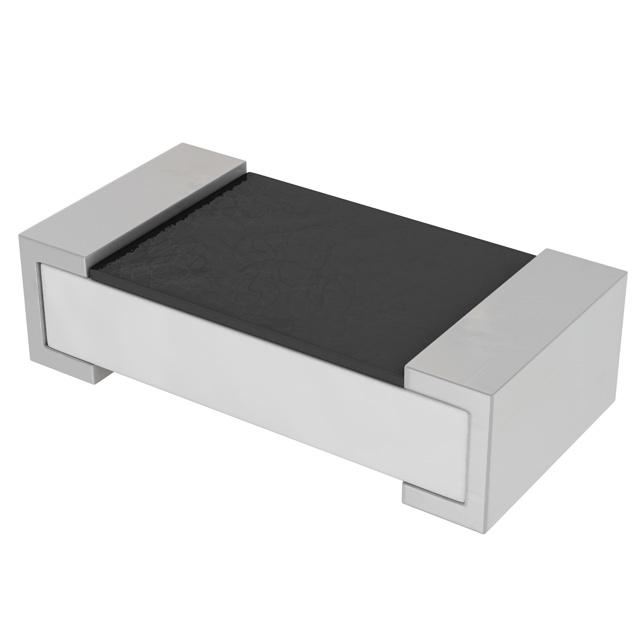

RC 系列 0603 0.1 W 18 Ohms 1% ±100 ppm/°C 表面贴装 厚膜 贴片电阻
SMD器/芯片电阻器
欧时:
Resistor Thick Film 0603 18R
立创商城:
18Ω ±1% 100mW
得捷:
RES 18 OHM 1% 1/10W 0603
e络盟:
SMD片式电阻, 0603 [1608公制], 18 ohm, RC Series, 75 V, 厚膜, 100 mW
艾睿:
The RC0603FR-0718RL fixed single surface-mount resistor from Yageo makes it easy to add resistors to your circuit board. This part has a power rating of 0.1 1/10 W. This product has a resistance value of 18 Ohm. Its temperature coefficient is ±100 ppm/°C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This device is made with thick film technology. This product is 1.6 mm long, 0.45 mm tall and 0.8 mm deep. It has a tolerance of 1%. This part has an operating temperature of -55 to 155 °C.
Chip1Stop:
Res Thick Film 1.6 x 0.8 mm 18 Ohm 1% 0.1W1/10W 100ppm/ C Molded SMD Paper T/R
Verical:
Res Thick Film 0603 18 Ohm 1% 1/10W �100ppm/�C Molded SMD Paper T/R
Newark:
# YAGEO PHYCOMP RC0603FR-0718RL Surface Mount Thick Film Resistor, RC Series, 18 ohm, 100 mW, - 1%, 50 V, 0603 [1608 Metric]
儒卓力:
**RC0603 18R 1% 0,1W **
额定电压DC 50.0 V
容差 ±1 %
额定功率 0.1 W
产品系列 RC
电阻 18 Ω
阻值偏差 ±1 %
工作温度Max 155 ℃
工作温度Min -55 ℃
精度 ±1 %
额定电压 50 V
安装方式 Surface Mount
引脚数 2
封装公制 1608
封装 0603

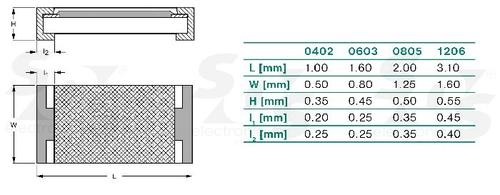

长度 1.6 mm
宽度 0.8 mm
高度 0.45 mm
封装公制 1608
封装 0603
工作温度 -55℃ ~ 155℃
温度系数 ±100 ppm/℃
产品生命周期 Active

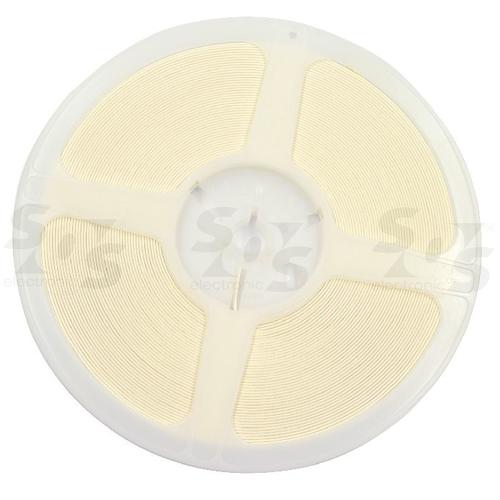

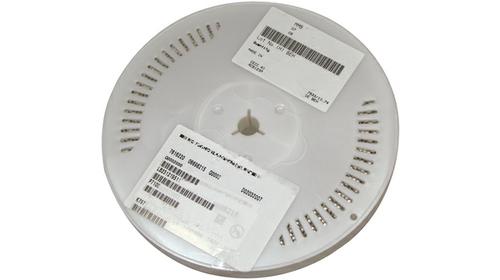

包装方式 Cut Tape CT
最小包装 5000
制造应用 工业, Industrial, Portable Devices, 便携式器材, 电源管理, Power Management, 消费电子产品, Consumer Electronics
RoHS标准
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
RC0603FR-0718RL Yageo 国巨 | 当前型号 | 当前型号 |
9C06031A18R0FKHFT 国巨 | 完全替代 | RC0603FR-0718RL和9C06031A18R0FKHFT的区别 |
RC0603JR-0718RL 国巨 | 类似代替 | RC0603FR-0718RL和RC0603JR-0718RL的区别 |
WR06X18R0FTL 台湾华科 | 功能相似 | RC0603FR-0718RL和WR06X18R0FTL的区别 |
