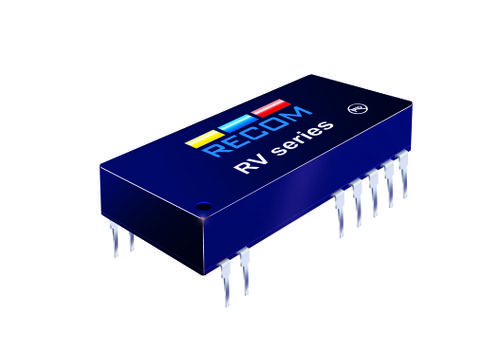

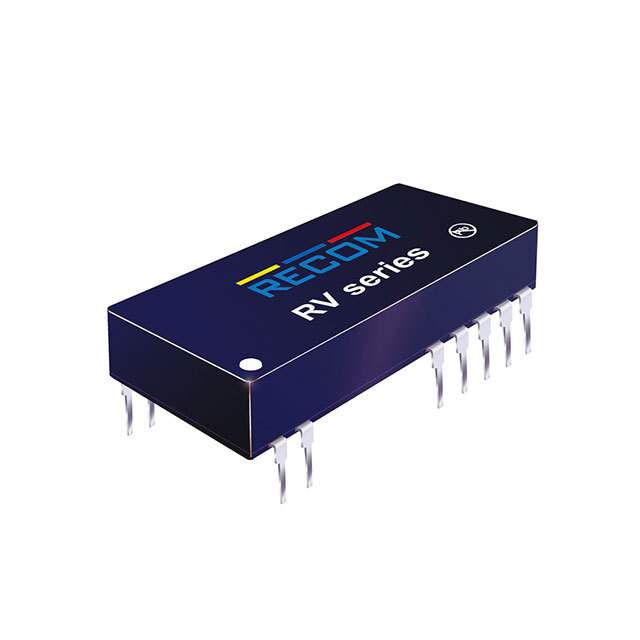

RECOM POWER RV-1224D 直流/直流转换器, 隔离电路板安装, 医用, 通孔安装, 2W, 24V, 42mA, -24V, 42mA
RV Series
2 Watt DIP24 Miniature Single & Dual Output
Features
Unregulated Converters
● Safety standards and approvals:
EN 60950 certified, rated for 250VAC LVD test report
● UL-60950-1 / CSA C22.2 certified
● 6kVDC Isolation
● UL94V-0 Package Material
● Optional Continuous Short Circuit Protected
● Fully Encapsulated
● Efficiency to 82%
得捷:
DC DC CONVERTER +/-24V 2W
贸泽:
Isolated DC/DC Converters 2W DC/DC MIN 6kV UNREG 12Vin +/-24out
e络盟:
# RECOM POWER RV-1224D 直流/直流转换器, 隔离电路板安装, 医用, 通孔安装, 2W, 24V, 42mA, -24V, 42mA
Chip1Stop:
Conv DC-DC Dual Non-Inv/Inv/Step Up/Step Down 10.8V to 13.2V 14-Pin DIP Tube
AMEYA360:
CONV DC/DC 2W 12VIN +/-24VOUT
额定功率 2 W
输出接口数 2
输出电压 ±24 V
输出功率 2 W
隔离电压 6 kV
输入电压Max 13.2 V
输入电压Min 10.8 V
输入电压DC Max 13.2 V
输入电压DC Min 10.8 v
输出电流Max 42mA, 42mA
输出功率Max 2 W
额定功率Max 2 W
输入电压 12V ~ 12V
安装方式 Through Hole
封装 DIP-24
长度 32.258 mm
宽度 14.7 mm
高度 11.1 mm
封装 DIP-24
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
制造应用 ITE（商业），医疗
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
