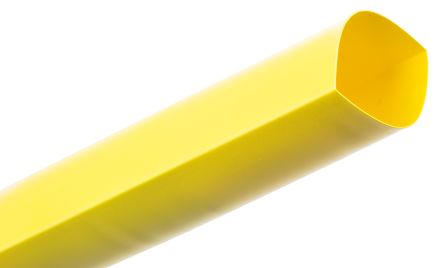

RNF-100-1-4-STK

RNF100 热收缩管道 2:1（1.2m 长）阻燃热收缩管，为电线端接和连接提供绝缘和应力消除。 在军事应用中广泛使用，用于轻型线束护套、绝缘、彩色编码、标识、液体防护并提供机械强度### 特点和优势• 极佳的全方位性能 • 收缩率 2:1 • 提供各种尺寸和颜色 • 阻燃 • 柔性 ### 认可UL 文件 E35586， CSA - LR31929。### 标准VG 95343 第 5 部分 A 型和 B 型，VDE 0341/pt 9005，Def Stan 59-97 2b 型，MIL-DTL-23053/5，1 类（彩色），BS 3G-198 第 3 部分 11B 型。### RNF100 管道警告 * 无色热收缩非阻燃，没有 UL/CSA 认证。

The RNF-100 series from are general purpose, flame retardant, high performance polyolefin heat shrinkable tubing. Features higher level of performance at elevated temperature, mechanical abrasion and fluid resistance, tubing are high quality, heat shrinkable product for wide variety of uses, has an excellent physical, chemical and electrical properties that meet industrial and military requirements.

.

Irradiated modified polyolefin material

.

Flexible coloured polyolefin tubing

.

Single wall type

.

Maximum working voltage of 600V

.

Wide range of colours and sizes

.

2:1 shrink ratio

.

Fluid types suited are aviation Fuel, Hydraulic Fluid, Lubricating Oil, Water

.

Compliant to MIL-DTL-23053/5 Class 1&2 standard

.

Minimum shrink temperature +121°C

.

Operating temperature range -55°C to +135°C
