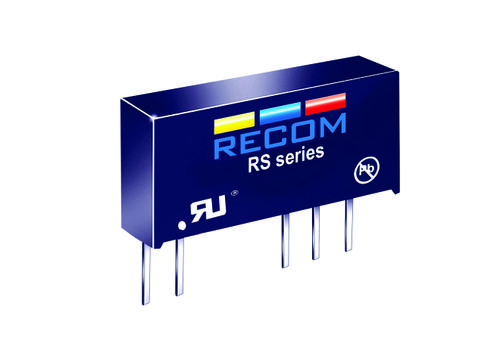

Module DC-DC 48Vin 2Out 12V/-12V 0.083A/-0.083A 2W 7Pin SIP Tube
2 Watt SIP8 Isolated Single & Dual Output
Description
High power-density, an industrial temperature range of -40°C to +85°C and extra features like Remote-On Off-control are just some of the characteristics of this converter, ideal for highly sophisticated industrial designs. The RS series is available with isolation of 2kV or 3kV by chosing option "/H2" or "/H3" in which case it is also ideal for medical applications which additionally require EN-60601-1 certification.
Features Regulated Converters
● 2:1 Wide Range Voltage Input
● 1kVDC, 2kVD & 3kVDC Isolation
● UL94V-0 Package Material
● Continuous Short Circuit Protection with Current Foldback
● Low Noise
● No External Capacitor needed
● Efficiency to 83%
