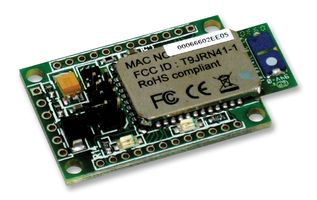

RN-41-SM

MICROCHIP  RN-41-SM  模块, 蓝牙1级, UART插座

is a though hole, low power and highly flexible Bluetooth socket module. This module supports SPP/DUN and HCI Bluetooth interface protocols, is simple to design in and fully certified. With its high performance on chip antenna and support for Bluetooth Enhanced Data Rate EDR, the RN-41 delivers up to 3Mbps data rate for distances to 100M. The RN41 is perfect for battery powered applications and by default is ready to use in the SPP Serial Port Profile configuration. It uses only 250µA in sleep mode while still being discoverable and connectable. Multiple low power modes available allow you to dial in the lowest power profile for your application. The RN-41 socket module is the perfect method for adding Bluetooth wireless capability to existing products without redesign, saving you significant time and money.

.

Socket module with UART interface, UART baud rates from 1200 to 3Mbit

.

Fully qualified Bluetooth 2.1/2.0/1.2/1.1 module

.

Bluetooth v2.1+EDR support

.

Sustained SPP data rates of 240Kbps slave, 300Kbps master

.

SPP/DUN software stacks available.

.

RS232 on board with power enable on IO pin

.

Bluetooth SIG qualified, end product listing

.

Class 1 high power amplifier with on board ceramic RF chip antenna
