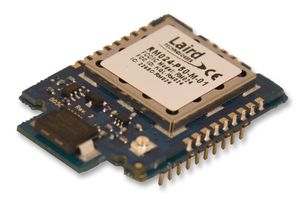

RM024-P50-M-01

LAIRD TECHNOLOGIES  RM024-P50-M-01  射频模块, RAMP, 2.4GHZ, 插头, 片式天线

This module is designed to provide robust wireless communications for any number of applications requiring a wireless transport for serial data. The RAMP Range Amplified MultiPoint module feature a Frequency Hopping Spread Spectrum FHSS protocol for excellent interference and multipath immunity. Server/Client architecture allows for more than 16 million clients to be addressed and communicating within the network. The is based on LT2510 core technology, enhanced with a new RF front end for improved sleep, improved link budget and a switchable antenna output.

.

Retries and acknowledgements

.

Configurable network parameters

.

Multiple generic I/O

.

280 kbps or 500 kbps RF data stream

.

Idle current draw of 9.5 mA, sleep current of 50 µA

.

Software selectable interface baud rates from 1200 bps to 460.8 kbps

.

Upgradable FW through serial port

.

Low cost, low power, and small size

.

Ideal for high volume, portable, and battery powered applications

.

Qualified for Industrial temperatures

.

Advanced configuration available using AT commands

.

Easy to use Configuration and Test Utility software

.

Chip antenna
