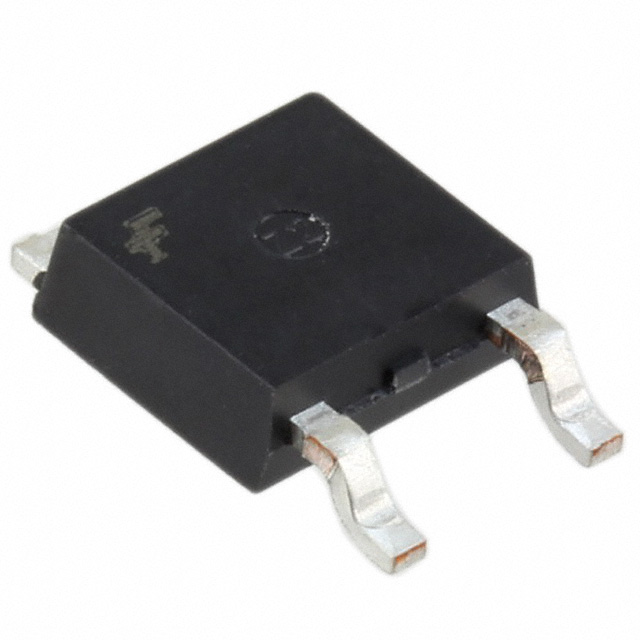

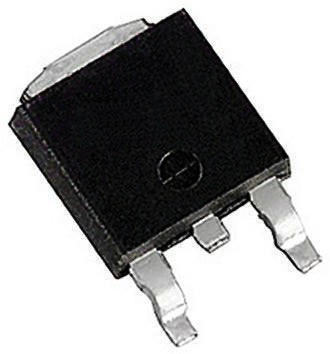

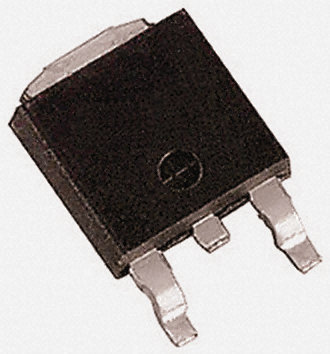

FAIRCHILD SEMICONDUCTOR RHRD660S9A 二极管, 超快, 6A, 600V, TO-252
The is a hyper-fast Diode with soft recovery characteristics trr <30ns. It has half the recovery time of ultra-fast diodes and are silicon nitride passivated ion-implanted epitaxial planar construction. This device is intended for use as free-wheeling/clamping diodes and rectifiers in a variety of switching power supplies and other power switching applications. Its low stored charge and hyper-fast soft recovery minimize ringing and electrical noise in many power switching circuits reducing power loss in the switching transistors.
- .
- Avalanche energy rated
- .
- Planar construction
- .
- AEC-Q101 qualified
额定电压DC 600 V
额定电流 6.00 A
输出电流 ≤6.00 A
正向电压 2.1V @6A
极性 Standard
热阻 3℃/W RθJC
反向恢复时间 35 ns
正向电流 6 A
最大正向浪涌电流（Ifsm） 60 A
正向电压Max 2.1 V
工作温度Max 175 ℃
工作温度Min -65 ℃
安装方式 Surface Mount
引脚数 3
封装 TO-252-3
宽度 6.22 mm
封装 TO-252-3
工作温度 -65℃ ~ 175℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 Non-Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
RHRD660S9A Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
RHRD660S9A_NL 飞兆/仙童 | 类似代替 | RHRD660S9A和RHRD660S9A_NL的区别 |
RHRD660S 飞兆/仙童 | 类似代替 | RHRD660S9A和RHRD660S的区别 |
