VISHAY RGL34G-E3/98 标准恢复二极管, 单, 400 V, 500 mA, 1.3 V, 150 ns, 10 A

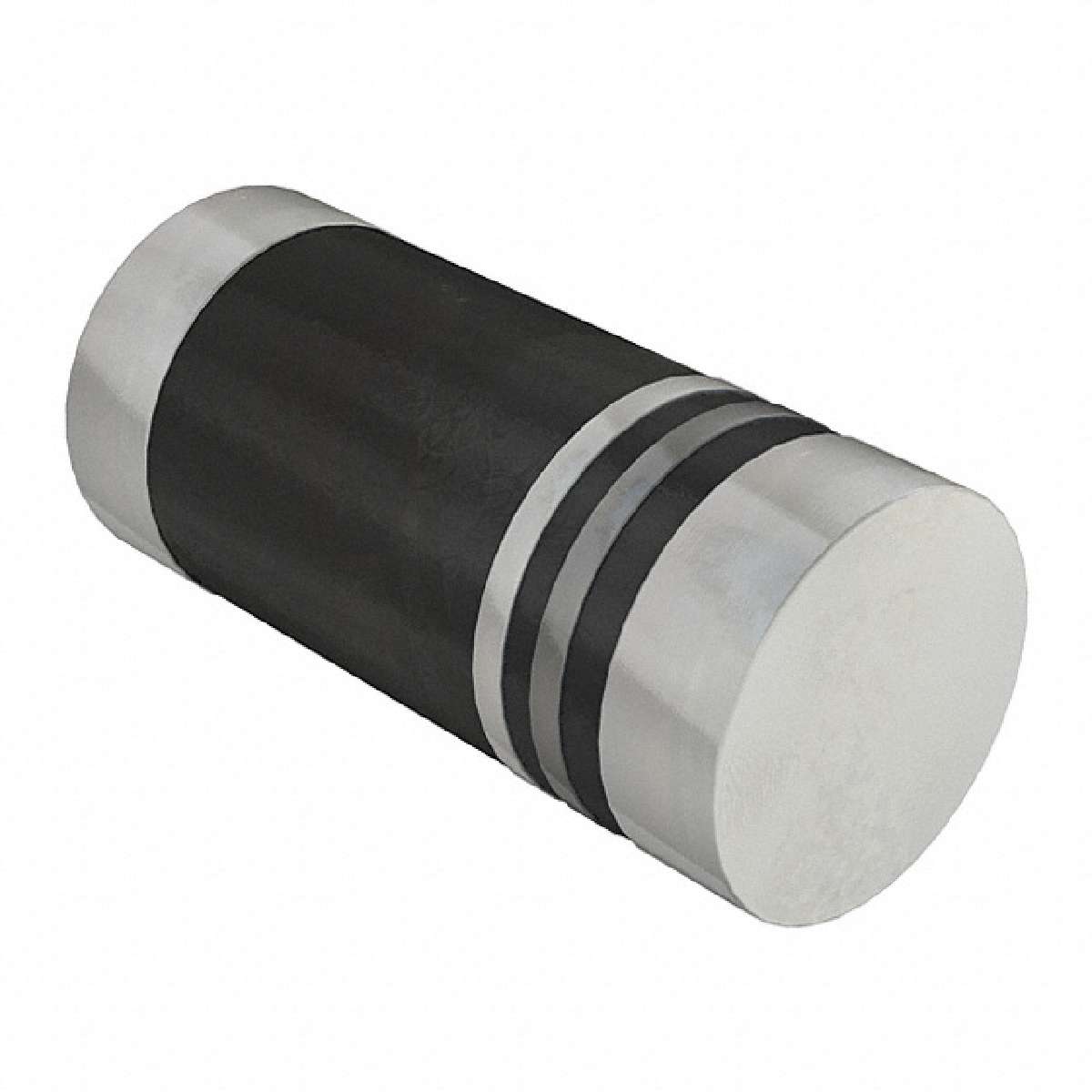

The is a surface-mount glass-passivated Junction Fast Switching Rectifier with moulded epoxy over glass body case and matte tin-plated solderable leads. It comes with two bands indicate cathode end - 1st band denotes device type and 2nd band denotes repetitive peak reverse voltage rating. It is suitable for use in fast-switching rectification of power supply, inverters, converters and freewheeling diodes.
- .
- Superectifier structure for high reliability condition
- .
- Ideal for automated placement
- .
- Fast switching for high efficiency
针脚数 2
正向电压 1.3V @500mA
反向恢复时间 150 ns
正向电流 500 mA
最大正向浪涌电流（Ifsm） 10 A
正向电压Max 1.3 V
正向电流Max 500 mA
工作温度Max 175 ℃
工作温度Min -65 ℃
安装方式 Surface Mount
引脚数 2
封装 DO-213AA
长度 3.68 mm
封装 DO-213AA
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 Power Management, Consumer Electronics, Industrial, Communications & Networking, Automotive
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
RGL34G-E3/98 Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
RGL34G Diotec Semiconductor | 功能相似 | RGL34G-E3/98和RGL34G的区别 |
RGL34GHE3/98 威世 | 功能相似 | RGL34G-E3/98和RGL34GHE3/98的区别 |
