开发套件, 用于MAG3110FC 3轴, 高性能, 高功能3D磁力计

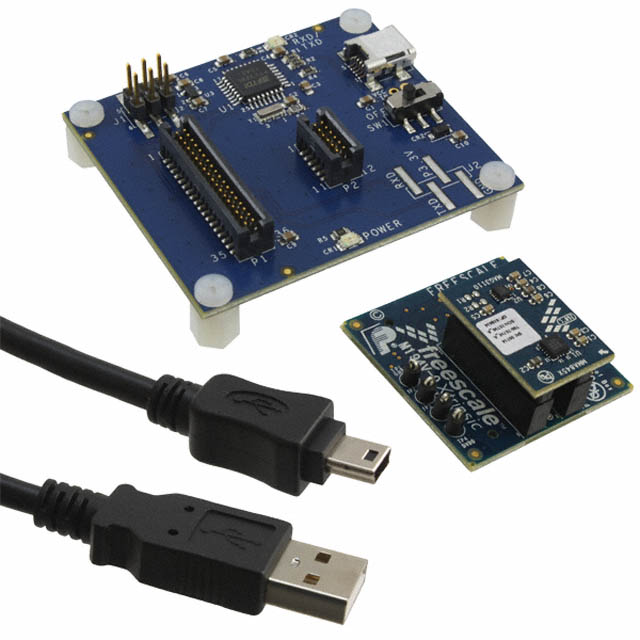

The is a development Kit for MAG3110FC three axis high performance, high functionality 3D magnetometer. This kit provides hardware and software for demonstrating the capability of the MAG3110 three axis digital magnetometer in an eCompass application with hard and soft iron calibration. The MAG3110 is a small, low power digital 3D magnetic sensor with a wide dynamic range to allow operation in PCBs with high extraneous magnetic fields. This magnetometer measures the three components of the local magnetic field which will be the sum of the geomagnetic field and the magnetic field created by components on the circuit board. Used in conjunction with a three axis accelerometer, orientation independent accurate compass heading information can be achieved. The MAG3110 features a standard I2C serial interface and is capable of measuring local magnetic fields up to 10Gauss with output data rates ODR up to 80Hz.
- .
- Easily evaluate and demonstrate sensor functionality
- .
- Unified architecture with the same GUI software
- .
- Plug and play
- .
- Flexible with a variety of boards that fit together
- .
- Can quickly demonstrate all sensor types
- .
- Demonstrates each sensor type acceleration, pressure, touch on a common platform
- .
- Customizable plug-and-play
- .
- Single software install reduces complexity and improves reliability
- .
- Consistent sensor platform
- .
- Demonstrates end application capabilities
ESD sensitive device, take proper precaution while handling the device.
This device is sensitive to mechanical shock. Improper handling can cause permanent damage of the part or cause the part to otherwise fail.
