R114205000

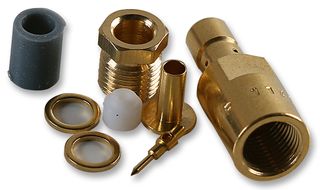

R114205000图片1
R114205000图片2
R114205000概述

RADIALL  R114205000  射频/同轴连接器, SMB同轴, 直型插座, 焊接, 50 ohm, RG179, RG187, RG188, RG316, 黄铜

The is a clamp SMB Straight Jack for use with KX22A, RG188, RG187, RG179 and RG316 RF coaxial cables. It has gold over nickel plated brass body with centre contact and a PTFE insulator.

.
1000MR Minimum insulation resistance
.
1000Veff Minimum dielectric withstanding voltage
.
335Veff Maximum voltage rating
.
500-cycle Minimum mating life
.
-65 to 165°C Operating temperature range
R114205000中文资料参数规格
技术参数

极性 Male

触点电镀 Gold

绝缘电阻 1000 MΩ

拔插次数 500

工作温度Max 165 ℃

工作温度Min -65 ℃

物理参数

触点材质 Brass

其他

产品生命周期 Active

制造应用 Industrial, 射频通信, 工业, RF Communications

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买R114205000
型号: R114205000
制造商: Radiall
描述:RADIALL  R114205000  射频/同轴连接器, SMB同轴, 直型插座, 焊接, 50 ohm, RG179, RG187, RG188, RG316, 黄铜
替代型号R114205000
型号/品牌 代替类型 替代型号对比

R114205000

Radiall

当前型号

当前型号

24-02L-1-TGG

Multicomp

功能相似

R114205000和24-02L-1-TGG的区别
