16位微控制器 - MCU MCU 3/5V 12K Pb-Free 20-SSOP
R8C R8C/1x/1B Microcontroller IC 16-Bit 20MHz 12KB 12K x 8 FLASH 20-LSSOP
得捷:
IC MCU 16BIT 12KB FLASH 20LSSOP
贸泽:
16位微控制器 - MCU MCU 3/5V 12K Pb-Free 20-SSOP
艾睿:
This R5F211B3SP#U0 microcontroller from Renesas is perfect for users that want a fast CPU. This microcontroller has a minimum operating temperature of -20 °C and a maximum of 85 °C. It has a maximum clock speed of 20 MHz. Its flash program memory is 12KB. Its ADC resolution is 10. This device is based on the R8C core architecture. This is a 16 bit processor. This device has a typical operating supply voltage of 3.3|5 V. Its minimum operating supply voltage of 3 V, while its maximum is 5.5 V.
Chip1Stop:
MCU 16-Bit R8C CISC 12KB Flash 3.3V/5V 20-Pin LSSOP Tube
Verical:
MCU 16-bit R8C CISC 12KB Flash 3.3V/5V 20-Pin LSSOP Tube
频率 20 MHz
电源电压DC 5.00 V, 5.50 V max
时钟频率 20.0 MHz, 20.0 MHz max
RAM大小 768 B
耗散功率 300 mW
I/O引脚数 13
存取时间 20.0 µs
内核架构 R8C
模数转换数ADC 1
工作温度Max 85 ℃
工作温度Min -20 ℃
耗散功率Max 300 mW
电源电压 2.7V ~ 5.5V
安装方式 Surface Mount

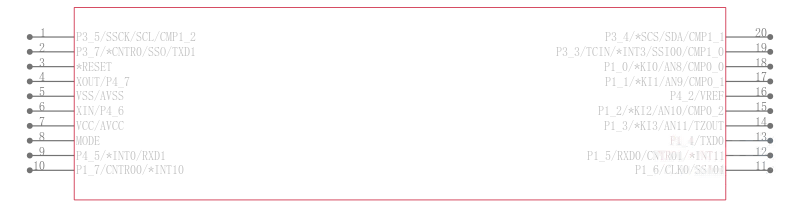

引脚数 20

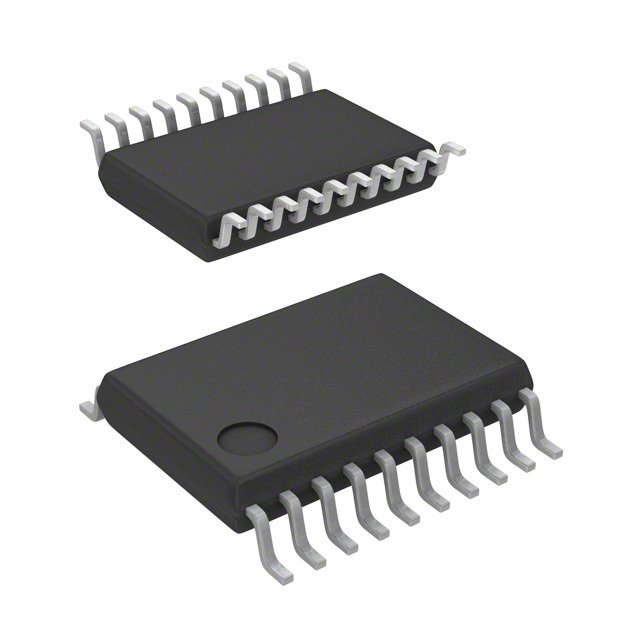

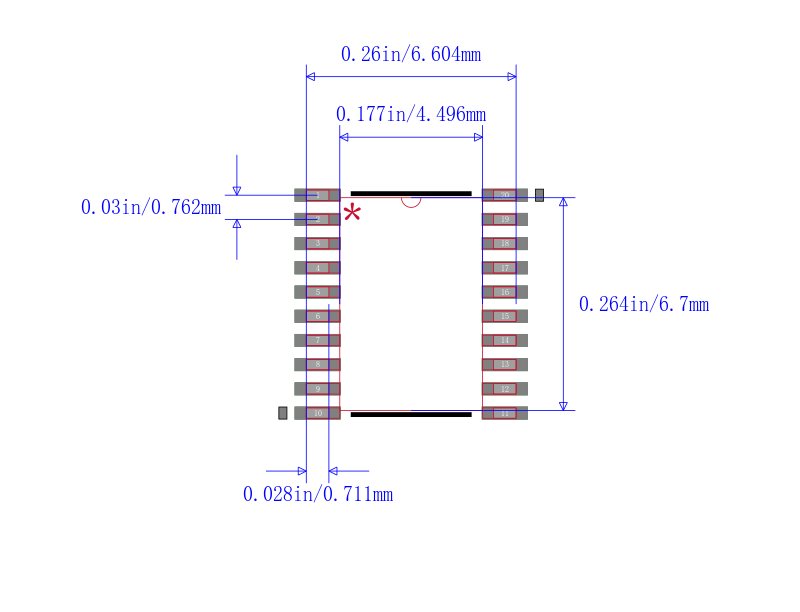

封装 LSSOP-20
封装 LSSOP-20
工作温度 -20℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
