其他系列 20MHz 8K@x8bit

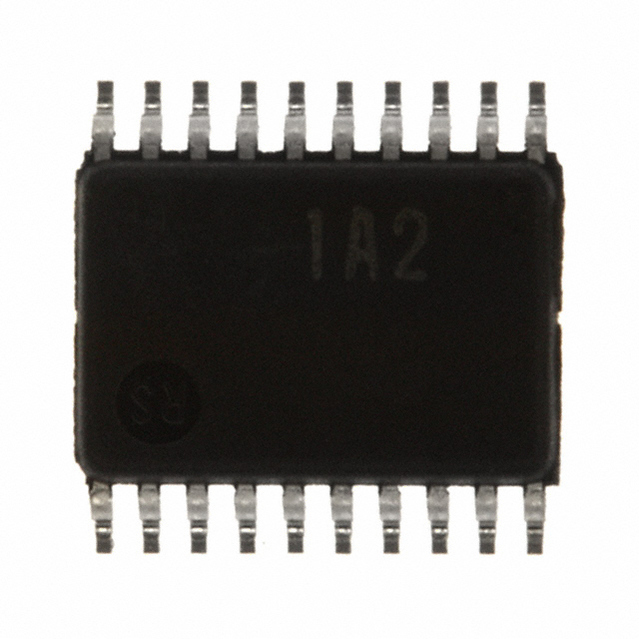

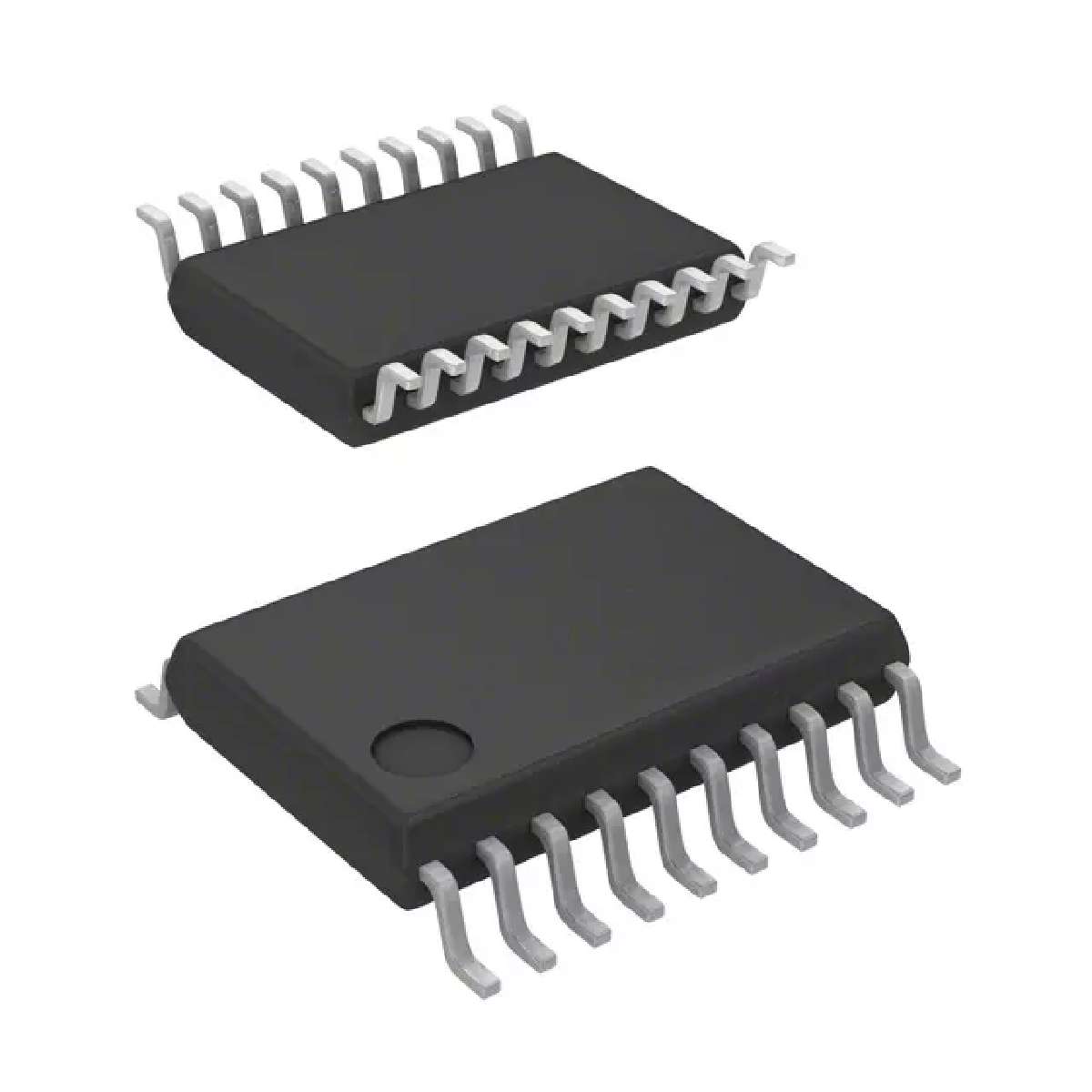

R8C R8C/1x/1A Microcontroller IC 16-Bit 20MHz 8KB 8K x 8 FLASH 20-LSSOP
立创商城:
其他系列 20MHz 闪存：8K@x8bit
得捷:
IC MCU 16BIT 8KB FLASH 20LSSOP
艾睿:
Renesas&s; R5F211A2SP#U0 microcontroller can essentially eliminate certain components and speed up simple tasks within your circuit. This microcontroller has an operating temperature range of -20 °C to 85 °C. It has a maximum clock speed of 20 MHz. This is a 16 bit processor. Its flash program memory is 8KB. Its ADC resolution is 10. This device has a typical operating supply voltage of 3.3|5 V. Its minimum operating supply voltage of 3 V, while its maximum is 5.5 V.
安富利:
MCU 16-bit R8C CISC 8KB Flash 3.3V/5V 20-Pin LSSOP Tube
Chip1Stop:
MCU 16-Bit R8C CISC 8KB Flash 3.3V/5V 20-Pin LSSOP Tube
Verical:
MCU 16-bit R8C CISC 8KB Flash 3.3V/5V 20-Pin LSSOP Tube
频率 20 MHz
电源电压DC 5.00 V, 5.50 V max
时钟频率 20.0 MHz, 20.0 MHz max
RAM大小 512 x 8
位数 16, 32
耗散功率 300 mW
FLASH内存容量 16 KB
I/O引脚数 13
存取时间 20.0 µs
内核架构 R8C
模数转换数ADC 1
工作温度Max 85 ℃
工作温度Min -20 ℃
耗散功率Max 300 mW
安装方式 Surface Mount
引脚数 20
封装 LSSOP-20
封装 LSSOP-20
工作温度 -20℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
