USM PNP 50V 100mA

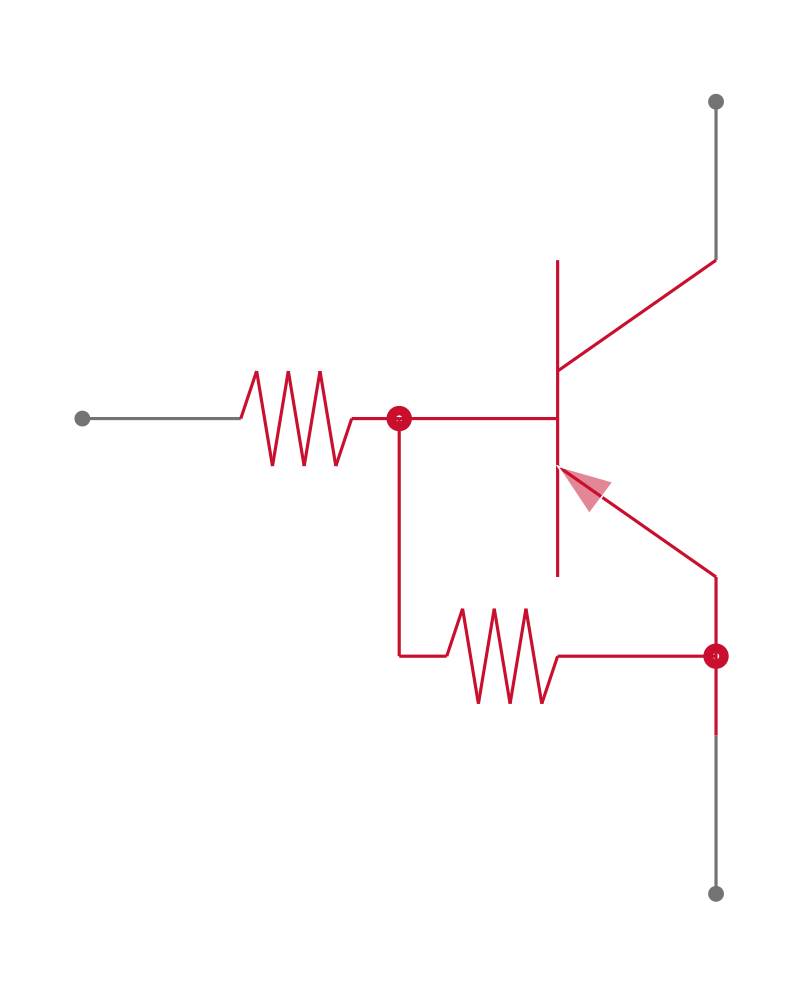

"s PNP digital transistor is the ideal component to use in situations where digital signal processing is required. This product"s maximum continuous DC collector current is 100 mA, while its minimum DC current gain is 120@1mA@5 V. It has a maximum collector emitter saturation voltage of 0.3@0.25mA@5mA V. It has a maximum collector emitter voltage of 50 V. Its maximum power dissipation is 100 mW. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. It is made in a single configuration. This transistor has an operating temperature range of -55 °C to 150 °C.
极性 PNP
耗散功率 100 mW
击穿电压集电极-发射极 50 V
集电极最大允许电流 100mA
最小电流放大倍数hFE 120
最大电流放大倍数hFE 400
额定功率Max 100 mW
工作温度Max 150 ℃
工作温度Min -55 ℃
增益带宽 200 MHz
耗散功率Max 100 mW
安装方式 Surface Mount
引脚数 3
封装 SC-70
长度 2 mm
宽度 1.25 mm
高度 0.9 mm
封装 SC-70
工作温度 -55℃ ~ 150℃
产品生命周期 Discontinued at Digi-Key
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
