1A,Vishay Semiconductor采用工业标准封装类型的多用途、高效快速恢复功率二极管。薄型,高度为 1mm 雪崩整流器 ### 二极管和整流器,Vishay Semiconductor

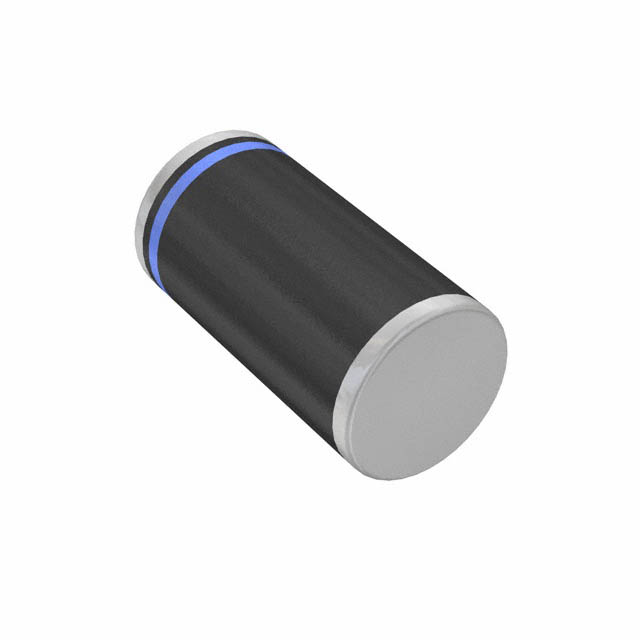

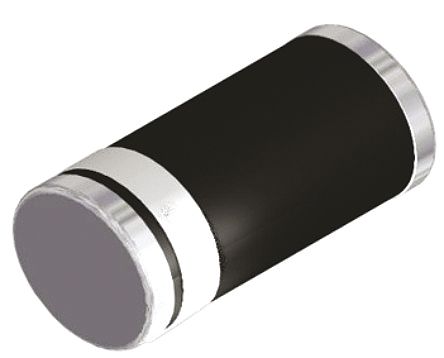

The is a surface-mount glass-passivated Junction Fast Switching Rectifier with moulded epoxy over glass body case and matte tin-plated solderable leads. It comes with two bands indicate cathode end - 1st band denotes device type and 2nd band denotes repetitive peak reverse voltage rating. It is suitable for use in fast-switching rectification of power supply, inverters, converters and freewheeling diodes.
针脚数 2
正向电压 1.3V @1A
反向恢复时间 150 ns
正向电流 1 A
最大正向浪涌电流(Ifsm) 30 A
正向电压Max 1.3 V
正向电流Max 1 A
工作温度Max 175 ℃
工作温度Min -65 ℃
安装方式 Surface Mount
引脚数 2
封装 DO-213AB-2
长度 5.2 mm
宽度 2.67 mm
高度 2.67 mm
封装 DO-213AB-2
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Power Management, Consumer Electronics, Industrial, Communications & Networking, Automotive
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
RGL41D-E3/96 Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
RGL41A-E3/96 威世 | 完全替代 | RGL41D-E3/96和RGL41A-E3/96的区别 |
RGL41B-E3/96 威世 | 类似代替 | RGL41D-E3/96和RGL41B-E3/96的区别 |
RGL41AHE3/96 威世 | 类似代替 | RGL41D-E3/96和RGL41AHE3/96的区别 |
