RI-I16-114A-01

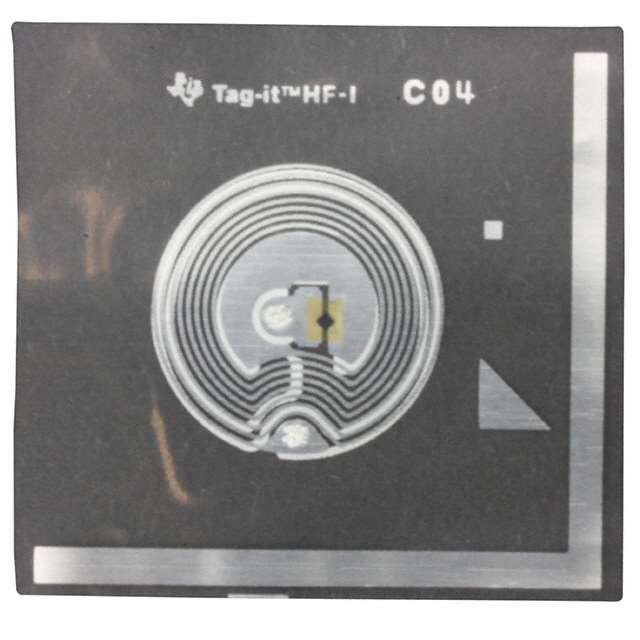

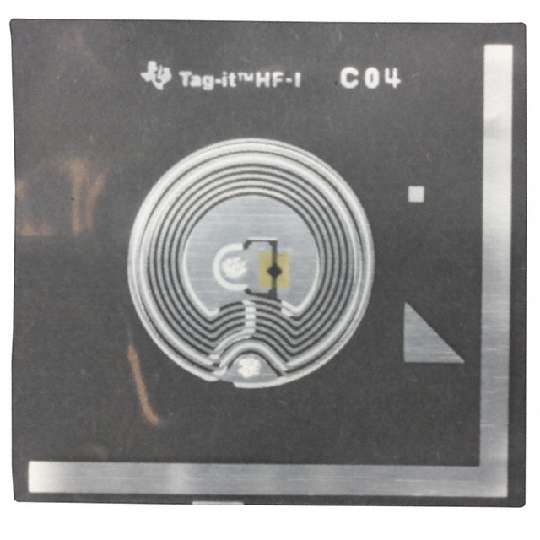

Tag-it™ HF-I 标准感应器Inlay：24.2mm 圆形

Texas Instruments’ Tag-it™ HF-I standard transponder inlays consist of 13.56-MHz high-frequency HF transponders that are compliant with the ISO/IEC 15693 and ISO/IEC 18000-3 global open standards. These products offer a user-accessible memory of 256 bits, organized in eight blocks, and an optimized command set available in five different antenna shapes, with frequency offset for integration into paper, PVC, or other substrates.

The Tag-it HF-I standard transponder inlays are manufactured with ’s patented laser tuning process to provide consistent read performance. Prior to delivery, the transponders undergo complete functional and parametric testing, in order to provide the high quality that customers have come to expect from TI.

The Tag-it HF-I standard transponder inlays are well suited for a variety of applications including, but not limited to, product authentication, library, supply-chain management, asset management, and ticketing/stored value applications.

.

ISO/IEC 15693-2, -3; ISO/IEC 18000-3 Compliant

.

13.56-MHz Operating Frequency

.

256-Bit User Memory in 8 blocks × 32-Bit

.

Application Family Identifier AFI

.

Fast Simultaneous Identification Anti-Collision
