Inductor Power Wirewound 330uH 10% 1kHz 20Q-Factor Ferrite 780mA 850mOhm DCR RDL Bag
Inductor Power Wirewound 330uH 10% 1KHz 20Q-Factor Ferrite 780mA 850mOhm DCR RDL Bag
立创商城:
330uH ±10% 780mA 850mΩ
得捷:
FIXED IND 330UH 780MA 850MOHM TH
贸泽:
Fixed Inductors 330uH 10% .78A
e络盟:
INDUCTOR, POWER, 330UH, 0.78A, 10%
艾睿:

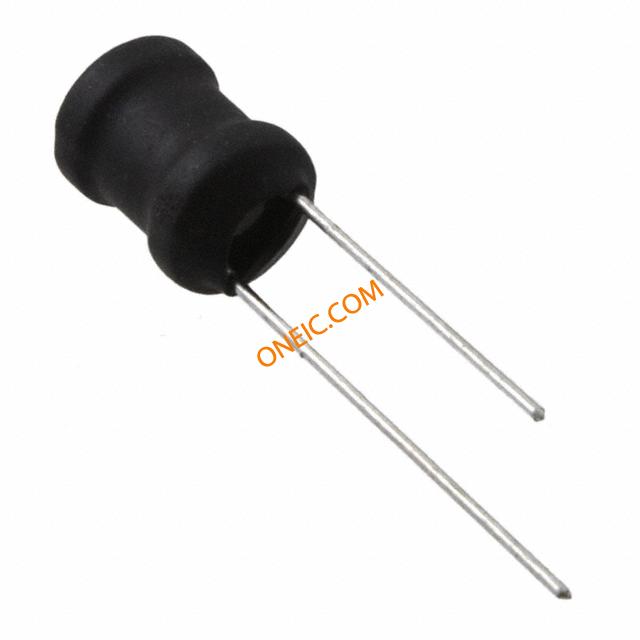

This power RLB9012-331KL leaded inductor from Bourns is very suitable for tape and reel packaging for auto placement. This part has a pitch of 5 mm. This leaded inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 2.3M Hz. It has an inductance of 330u H. This leaded inductor has a maximum DC current of 780m A with a maximum resistance of 850m Ohm. It has a tolerance of 10%. This device is made with wirewound technology. This product is 12.2 mm tall with a diameter of 9 mm.
安富利:
Ind Power Wirewound 330uH 10% 1KHz 20Q-Factor Ferrite 780mA RDL Bag
Verical:
Inductor Power Wirewound 330uH 10% 1KHz 20Q-Factor Ferrite 0.78A 0.85Ohm DCR RDL Bag
Newark:
# BOURNS RLB9012-331KL Inductor, Power, RLB Series, 330 µH, 0.78 A, 0.75 ohm, ± 10%
MASTER:
Inductor Power Wirewound 330uH 10% 1KHz 20Q-Factor Ferrite 780mA 850mOhm DCR RDL Bag
Online Components:
Inductor Power Wirewound 330uH 10% 1KHz 20Q-Factor Ferrite 780mA 850mOhm DCR RDL Bag
Electro Sonic:
Inductor Power Wirewound 330uH 10% 1KHz 20Q-Factor Ferrite 780mA 850mOhm DCR RDL Bag
额定电流 780 mA
容差 ±10 %
电感 330 µH
自谐频率 2.3 MHz
电感公差 ±10 %
测试频率 1 kHz
电阻DC) ≤850 mΩ
工作温度Max 125 ℃
工作温度Min -55 ℃
电阻DC Max 850 mΩ
安装方式 Through Hole
封装 Radial
高度 12.2 mm
封装 Radial
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Bag
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8504508000
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
RLB9012-331KL Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
6000-331K-RC 伯恩斯 | 功能相似 | RLB9012-331KL和6000-331K-RC的区别 |
6000-331K 伯恩斯 | 功能相似 | RLB9012-331KL和6000-331K的区别 |
