TEXAS INSTRUMENTS RI-ACC-ATI2-00 天线调谐指示器, RFID, S2000

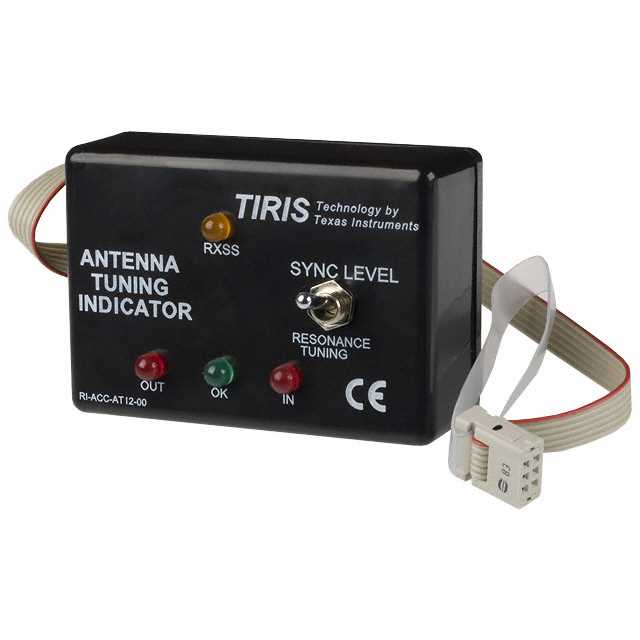

2-00 is a antenna tuning Indicator is a tool which simplifies the resonance tuning of the antenna and the adjustment of the RXSS synchronisation level for wireless read cycle synchronisation. The Antenna Tuning Indicator makes the resonance tuning of TI-RFid"s Standard RFM RI-RFM-104B and the High Performance RFM RI-RFM-007B easy. LED"s indicate in which direction the tuning core should be turned RI-RFM-104B or whether tuning capacitance need to be added or removed RI-RFM-007B to bring a connected antenna to resonance. As a second function, this tool helps to adjust the noise level threshold of a connected reader to best fit the actual environment of other interfering RF emitters. The Antenna Tuning Indicator also assists to optimise the wireless synchronisation of a S2000 system with multiple readers and so guarantees best possible reading performance. The ATI is connected directly to the RF Module via the ATI connector on the RF Module.
- .
- Operating frequency is 134.2Khz
- .
- Resonating tuning accuracy is ±600Hz
- .
- Operating temperature range 0°C to +50°C
- .
- ATI makes the resonance tuning of TI-RFid"s Standard RFM and the High Performance RFM easy
- .
- LED indication is used to indicate which direction the tuning core should be turned
Care must be taken when handling RFM. The high voltage across RFM could be harmful to users health.
