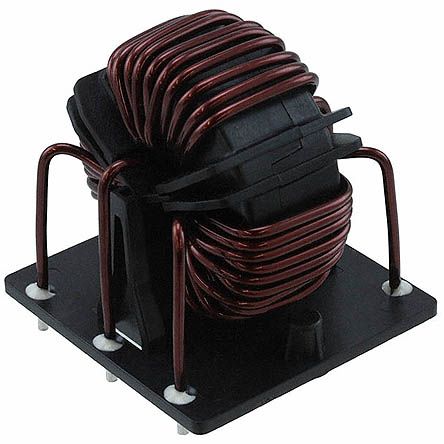

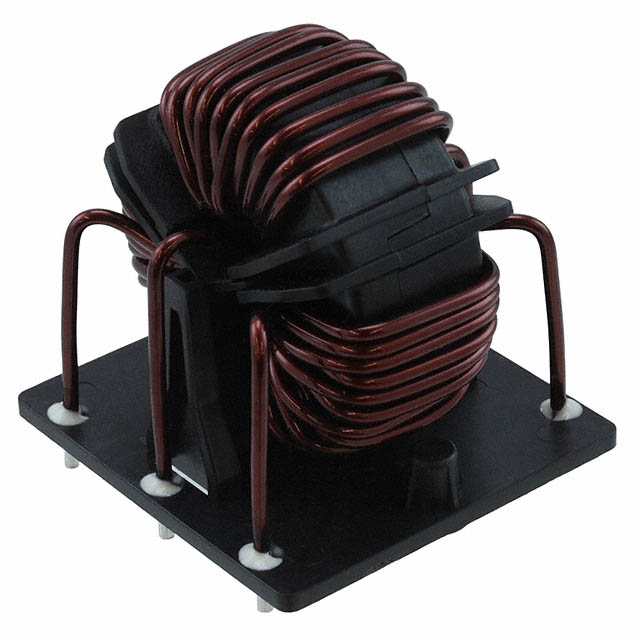

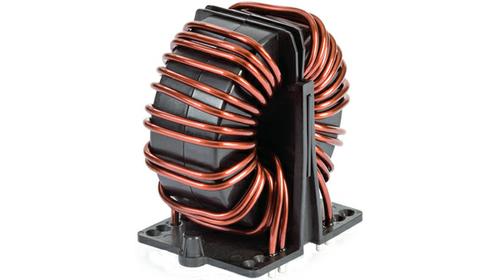

Schaffner RB Series 3 Phase Common Mode Chokes### CharacteristicsRadial through-hole inductor in vertical or horizontal PCB format Maximum current up to 50A High saturation core material Small size and open construction for convection or forced cooling Operating temperature: -40°C → +125°C ### ApplicationsEMI noise filtering on AC and DC lines Switch mode power supplies and UPS Charging stations, Fast chargers and Convertors Power supply filtering for midsize power range drives ### Schaffner 引线型电感器(扼流圈)
RB 系列 3 相共模
### 特点
径向通孔器,垂直或水平印刷电路板格式
最大电流高达 50 A
高饱和度磁芯材料
小尺寸和开放式结构,方便对流或强制冷却
工作温度:-40°C → +125°C
### 应用
交流和直流线路上 EMI 噪音滤波
开关模式电源和 UPS
充电站、快速充电器和转换器
电源滤波,适合中等功率范围驱动器
额定电压DC 1000 V
额定电压AC 600 V
额定电流 16 A
电感 1.3 mH
测试频率 1 kHz
额定电流Max 16 A
工作温度Max 125 ℃
工作温度Min -40 ℃
额定电压 600 VAC
电阻DC Max 5.7 mΩ
安装方式 Through Hole
引脚数 6
封装 58 mm x 55 mm x 58 mm
长度 58 mm
宽度 55 mm
高度 58 mm
封装 58 mm x 55 mm x 58 mm
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
