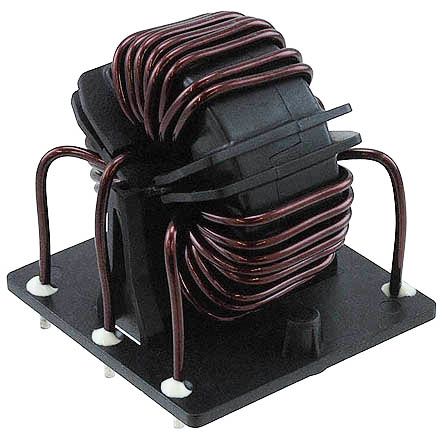

RB6532-16-0M8图片1

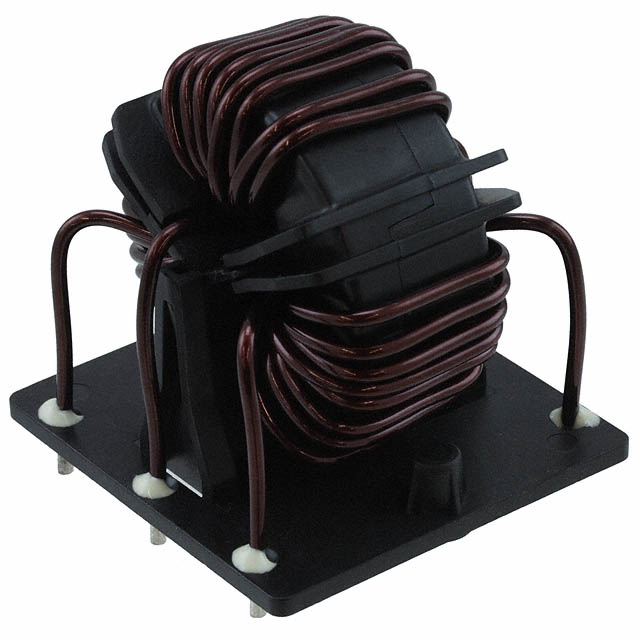

RB6532-16-0M8图片2

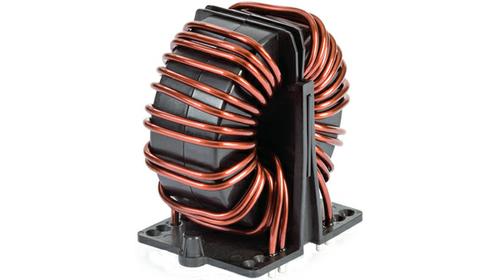

RB6532-16-0M8图片3
RB6532-16-0M8图片4
RB6532-16-0M8图片5
RB6532-16-0M8图片6
RB6532-16-0M8图片7
RB6532-16-0M8概述

Schaffner RB Series 3 Phase Common Mode Chokes### CharacteristicsRadial through-hole inductor in vertical or horizontal PCB format Maximum current up to 50A High saturation core material Small size and open construction for convection or forced cooling Operating temperature: -40°C → +125°C ### ApplicationsEMI noise filtering on AC and DC lines Switch mode power supplies and UPS Charging stations, Fast chargers and Convertors Power supply filtering for midsize power range drives ### Schaffner 引线型电感器(扼流圈)

RB Series 3 Phase Common Mode Chokes

### Characteristics

Radial through-hole inductor in vertical or horizontal PCB format

Maximum current up to 50A

High saturation core material

Small size and open construction for convection or forced cooling

Operating temperature: -40°C → +125°C

### Applications

EMI noise filtering on AC and DC lines

Switch mode power supplies and UPS

Charging stations, Fast chargers and Convertors

Power supply filtering for midsize power range drives

### Schaffner 引线型器(扼流圈)

RB6532-16-0M8中文资料参数规格
技术参数

额定电压DC 1000 V

额定电压AC 600 V

额定电流 16 A

电感 800 µH

测试频率 1 kHz

电阻DC) 4.7 mΩ

额定电流Max 16 A

工作温度Max 125 ℃

工作温度Min -40 ℃

额定电压 600 VAC

电阻DC Max 4.7 mΩ

封装参数

安装方式 Through Hole

封装 Non Standard

外形尺寸

长度 58 mm

宽度 55 mm

高度 58 mm

封装 Non Standard

物理参数

工作温度 -40℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买RB6532-16-0M8
型号: RB6532-16-0M8
制造商: Schaffner
描述:Schaffner RB Series 3 Phase Common Mode Chokes ### Characteristics Radial through-hole inductor in vertical or horizontal PCB format Maximum current up to 50A High saturation core material Small size and open construction for convection or forced cooling Operating temperature: -40°C → +125°C ### Applications EMI noise filtering on AC and DC lines Switch mode power supplies and UPS Charging stations, Fast chargers and Convertors Power supply filtering for midsize power range drives ### Schaffner 引线型电感器(扼流圈)
