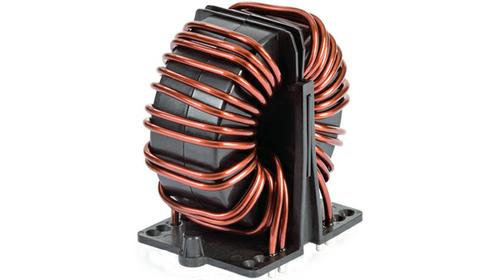

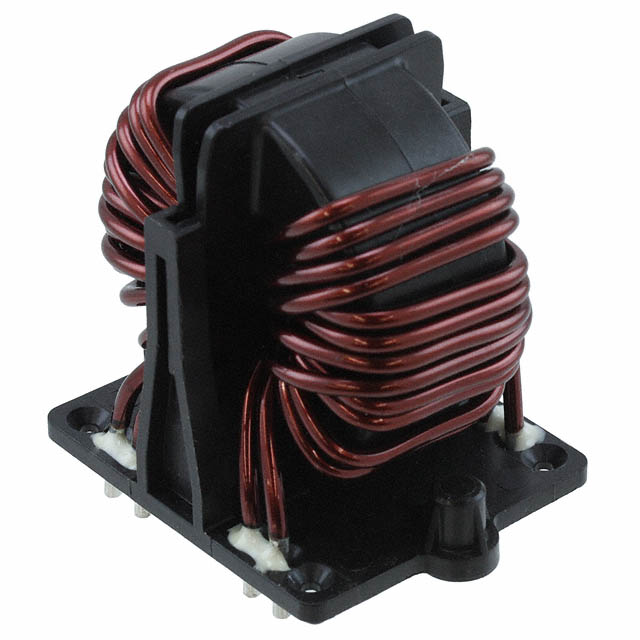

Common Mode Chokes Dual 450uH 1kHz 36A 1.5mOhm DCR Thru-Hole
450 µH @ 400 Hz 2 线路共模 通孔 36A DCR 1.5 毫欧（标准）
得捷:
CMC 450UH 36A 2LN TH
贸泽:
Common Mode Chokes / Filters 36A 0.45mH 2-WIRE VERTICAL
艾睿:
Common Mode Chokes Dual 450uH 1kHz 36A 1.5mOhm DCR Thru-Hole
Allied Electronics:
Common Mode Choke 1 phase 36A 0.5mH
Chip1Stop:
Common Mode Chokes Dual 450uH 1kHz 36A 1.5mOhm DCR Thru-Hole
Verical:
Common Mode Chokes Dual 450uH 1kHz 36A 0.0015Ohm DCR Thru-Hole
MASTER:
Common Mode Chokes Dual 450uH 1kHz 36A 1.5mOhm DCR Thru-Hole
Online Components:
Common Mode Chokes Dual 450uH 1kHz 36A 1.5mOhm DCR Thru-Hole
Electro Sonic:
Common Mode Chokes Dual 450uH 1kHz 36A 1.5mOhm DCR Thru-Hole
额定电压DC 1000 V
额定电压AC 600 V
额定电流 36 A
电感 450 µH
测试频率 1 kHz
额定电流Max 36 A
工作温度Max 125 ℃
工作温度Min -40 ℃
额定电压 600 VAC
电阻DC Max 1.5 mΩ
安装方式 Through Hole
封装 50 mm x 43.4 mm x 58 mm
长度 43.4 mm
宽度 43.4 mm
高度 58 mm
封装 50 mm x 43.4 mm x 58 mm
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
