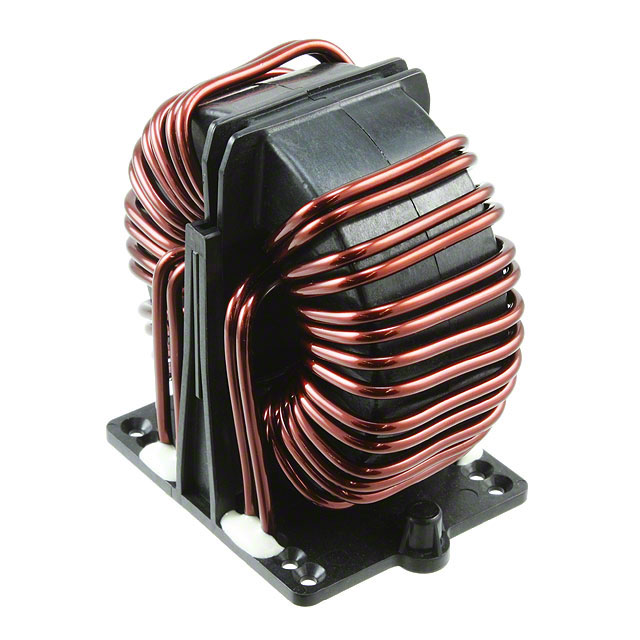

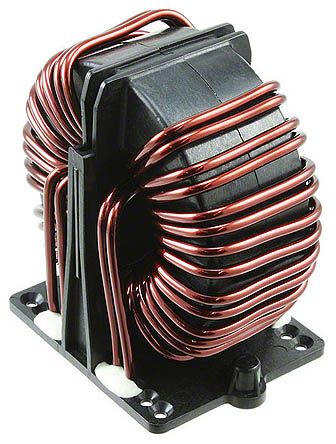

RB8522-36-1M5

Schaffner RB Series Common Mode Chokes### CharacteristicsRadial through-hole inductor in vertical or horizontal PCB format Maximum current up to 50A High saturation core material Small size and open construction for convection or forced cooling Operating temperature: -40°C → +125°C ### ApplicationsEMI noise filtering on AC and DC lines Switch mode power supplies and UPS Charging stations, Fast chargers and Convertors Power supply filtering for midsize power range drives ### Schaffner 引线型电感器（扼流圈）

RB Series Common Mode Chokes

### Characteristics

径向通孔器，垂直或水平印刷电路板格式

最大电流高达 50 A

高饱和度磁芯材料

小尺寸和开放式结构，方便对流或强制冷却

工作温度：-40°C → +125°C

### Applications

交流和直流线路上 EMI 噪音滤波

开关模式电源和 UPS

充电站、快速充电器和转换器

电源滤波，适合中等功率范围驱动器

得捷:
CMC 1.5MH 36A 2LN TH

欧时:
### Schaffner RB Series Common Mode Chokes### CharacteristicsRadial through-hole inductor in vertical or horizontal PCB format Maximum current up to 50A High saturation core material Small size and open construction for convection or forced cooling Operating temperature: -40°C → +125°C ### ApplicationsEMI noise filtering on AC and DC lines Switch mode power supplies and UPS Charging stations, Fast chargers and Convertors Power supply filtering for midsize power range drives ### Schaffner 引线型电感器（扼流圈）

贸泽:
Common Mode Chokes / Filters 36A 1.50mH 2-WIRE VERTICAL

艾睿:
Common Mode Chokes Dual 1.5mH 1kHz 36A 3mOhm DCR Thru-Hole

Allied Electronics:
1500 uH -30 to +50% Leaded Inductor, Max SRF:0.0004MHz, 36A Idc, 3mOhms Rdc RB

Chip1Stop:
Common Mode Chokes Dual 1.5mH 1kHz 36A Thru-Hole

Verical:
Common Mode Chokes Dual 1500uH 1kHz 36A 0.003Ohm DCR Thru-Hole

MASTER:
Common Mode Chokes Dual 1.5mH 1kHz 36A 3mOhm DCR Thru-Hole

Electro Sonic:
Common Mode Chokes Dual 1.5mH 1kHz 36A 3mOhm DCR Thru-Hole
