R82EC2220DQ50J

KEMET  R82EC2220DQ50J  电容, 聚酯膜 0.022uF, 100V, 5%, 径向引线

薄膜器

欧时:

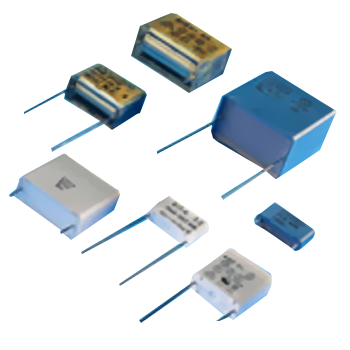

### 微型 R82 系列KEMET R82 系列为金属化聚酯薄膜，带径向镀锡引线。R82 系列径向引线电气焊接到电容器绕组末端上的触点金属层上。电容器采用自熄灭耐溶剂塑料外壳封装，具有热固性树脂材料。R82 系列的典型应用包括阻塞、耦合、去耦、计时和振荡器电路。 **特点和优势：** 工作电压范围：50 V 直流至 400 V 直流 符合 RoHS 标准且无铅端接 自修复 电容范围：0.001 μF – 4.7 μF 引线间隔：5 mm 电容容差：±5%、±10%、±20% 气候类别：55/105/56 工作温度范围：-55˚C 至 +105˚C 带式和卷式包装，符合 IEC 60286-2 标准 提供汽车 AEC-Q200 等级 ### 金属化 105 ° C

得捷:
CAP FILM 0.022UF 5% 100VDC RAD

立创商城:
22nF ±5% 100V

e络盟:
DC膜电容器, 22000 pF, 100 V, 金属化PET堆叠, ± 5%, R82系列, 径向盒

艾睿:
This R82EC2220DQ50J film capacitor from Kemet is ideal for voltage smoothing, and would make any filter or audio based design better for the smoothest signal. It can withstand a voltage of 100 VDC|63VAC. This part has a maximum operating temperature of 105 °C. This product is 7.2 mm long, 6.5 mm tall and 2.5 mm deep. The R82EC2220DQ50J part has a radial termination style. It has a tolerance of 5%. This part has a lead diameter of 0.5 mm and a pitch of 5 mm. Its capacitance value is 0.022uF.

Allied Electronics:
Capacitor; Polyester Metallized; Cap 0.022 uF; Tol 5%; Vol-Rtg 100 VDC; Radial

Chip1Stop:
Cap Film 0.022uF 100V PET 5% 7.2 X 2.5 X 6.5mm Radial 5mm 105 C Ammo Pack

TME:
Capacitor: polyester; 22nF; 63VAC; 100VDC; Pitch:5mm; ±5%

Newark:
# KEMET  R82EC2220DQ50J  Film Capacitor, 0.022 µF, PET Polyester, 100 V, R82 Series, ± 5%, Radial Leaded
