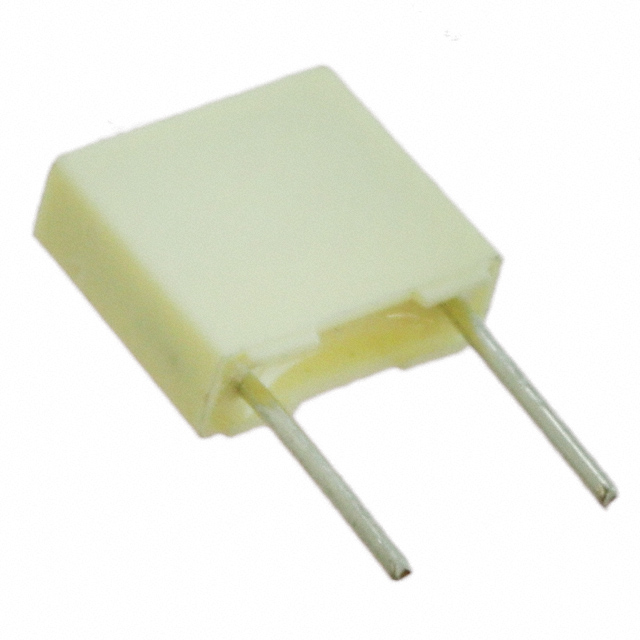

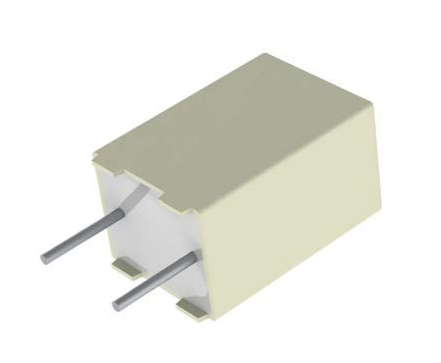

R82DC3220AA60J

220nF ±5% 63V 2.5mm

Metallized polyester film capacitor D.C. multi-purpose applications. Typical applications: by-passing, blocking, coupling, decoupling, timing, oscillator circuits.

得捷:
CAP FILM 0.22UF 5% 63VDC RADIAL

立创商城:
220nF ±5% 63V

艾睿:
This R82DC3220AA60J film capacitor from Kemet is ideal for voltage smoothing, and would make any filter or audio based design better for the smoothest signal. It can withstand a voltage of 63VDC|40 VAC. This part has a maximum operating temperature of 105 °C. This part has a lead diameter of 0.5 mm and a pitch of 5 mm. Its capacitance value is 0.22uF. This product is 7.2 mm long, 6.5 mm tall and 2.5 mm deep. It has a tolerance of 5%. The R82DC3220AA60J part has a radial termination style.

Allied Electronics:
Capacitor; Polyester Metallized; Cap 0.22uF; Tol 5%; Vol-Rtg 63 VDC; Radial

安富利:
Cap Film 0.22uF 63V PET 5% 7.2 X 2.5 X 6.5mm Radial 5mm 105°C Loose in Box

TME:
Capacitor: polyester; 220nF; 40VAC; 63VDC; Pitch:5mm; ±5%

Verical:
Cap Film 0.22uF 63V PET 5% 7.2 X 2.5 X 6.5mm Radial Stacked 5mm 105C Automotive Bulk

MASTER:
Radial Film Capacitor - Commercial Grade - 0.22 uF - +/- 5% - 63 VDC - +105°C - 5mm Lead Spacing.
