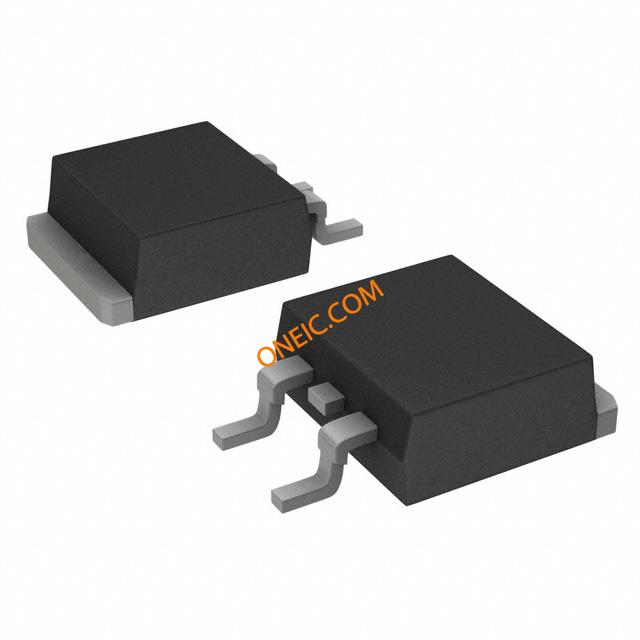

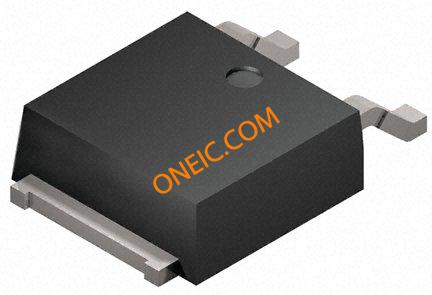

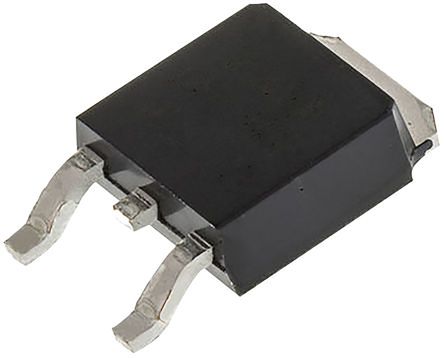

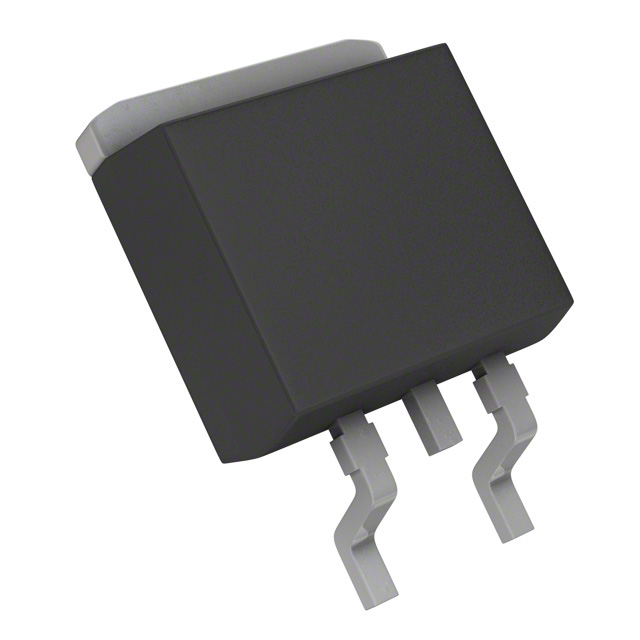

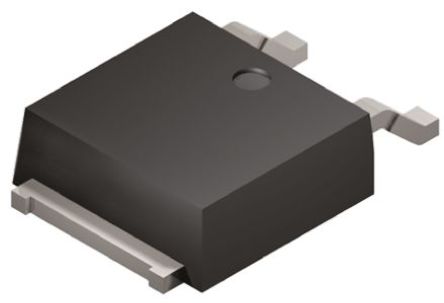

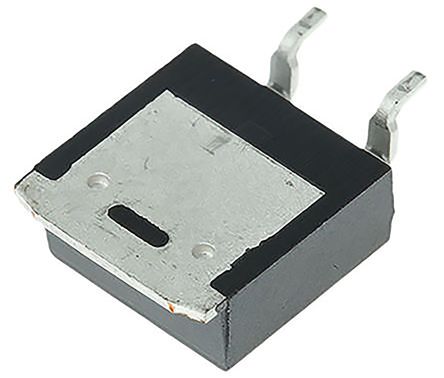

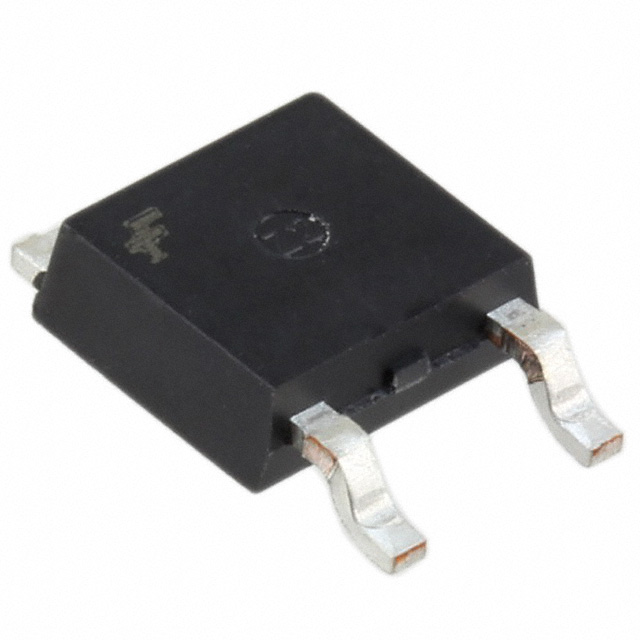

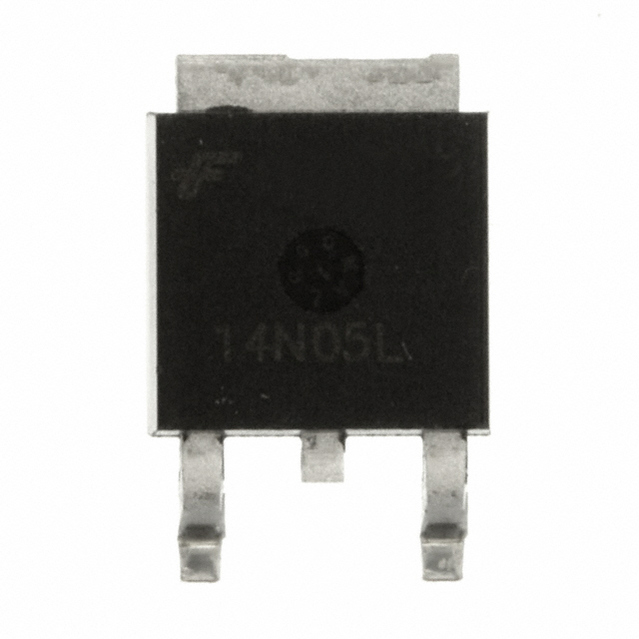

RFD14N05LSM9A

FAIRCHILD SEMICONDUCTOR  RFD14N05LSM9A  晶体管, MOSFET, N沟道, 14 A, 50 V, 100 mohm, 5 V, 2 V

The is a N-channel logic level Power MOSFETs manufactured using the MegaFET process. This process, which uses feature sizes approaching those of LSI integrated circuits, gives optimum utilization of silicon, resulting in outstanding performance. It is designed for use in applications such as switching regulators, switching converters and relay drivers. This performance is accomplished through a special gate oxide design which provides full rated conductance at gate bias in the 3 to 5V range, thereby facilitating true on-off power control directly from logic level 5V integrated circuits. Formerly developmental type TA09870.

.

Temperature compensating PSPICE® model

.

Can be driven directly from CMOS, NMOS and TTL circuits

.

Peak current vs. pulse width curve

.

UIS Rating curve
