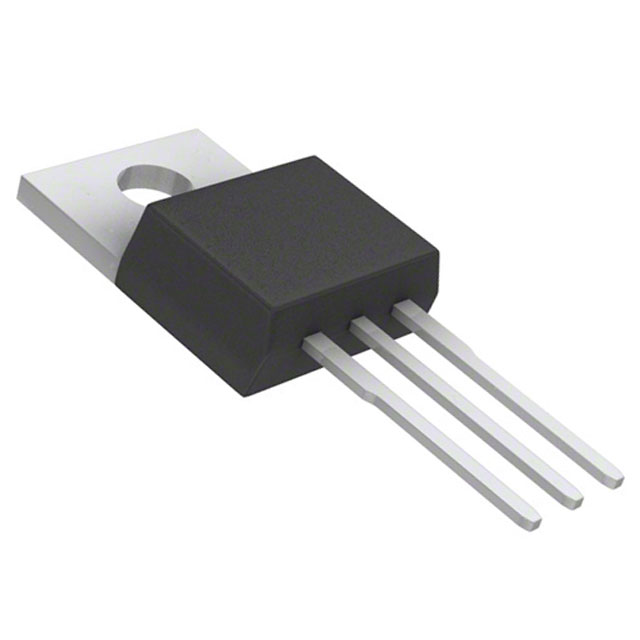

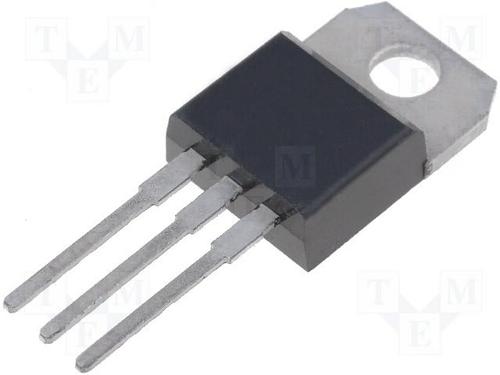

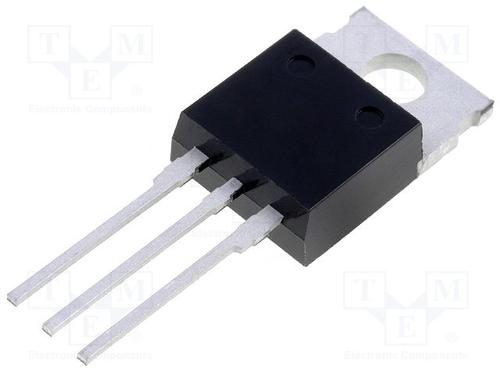

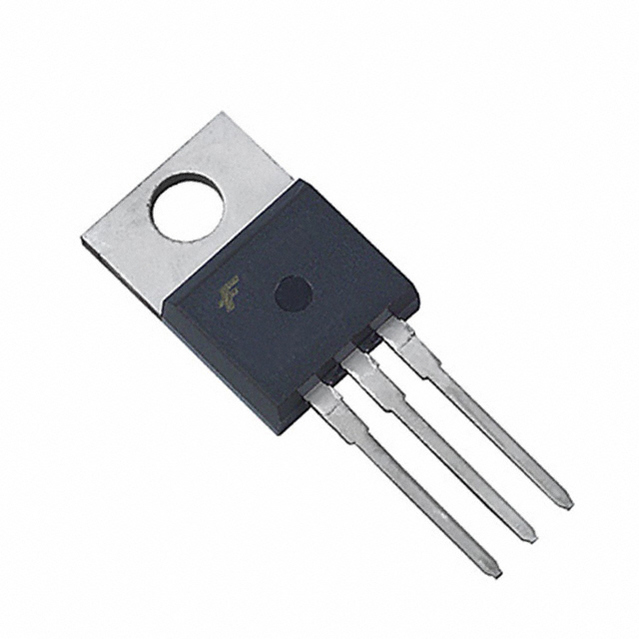

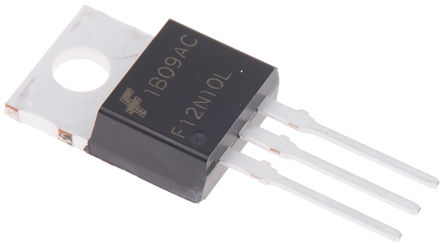

RFP12N10L

FAIRCHILD SEMICONDUCTOR  RFP12N10L  晶体管, MOSFET, N沟道, 12 A, 100 V, 200 mohm, 5 V, 2 V

The is a 100V N-channel logic level enhancement mode power MOSFET designed for logic level 5V driving sources in applications such as programmable controllers, automotive switching and solenoid drivers. This performance is accomplished through a special gate oxide design which provides full rated conduction at gate biases in the 3 to 5V range, thereby facilitating true on-off power control directly from logic circuit supply voltages. This product is general usage and suitable for many different applications.

.

Compatible with automotive drive requirements

.

Can be driven directly from QMOS, NMOS and TTL circuits

.

High input impedance

.

Nanosecond switching speed

.

Linear transfer characteristics
