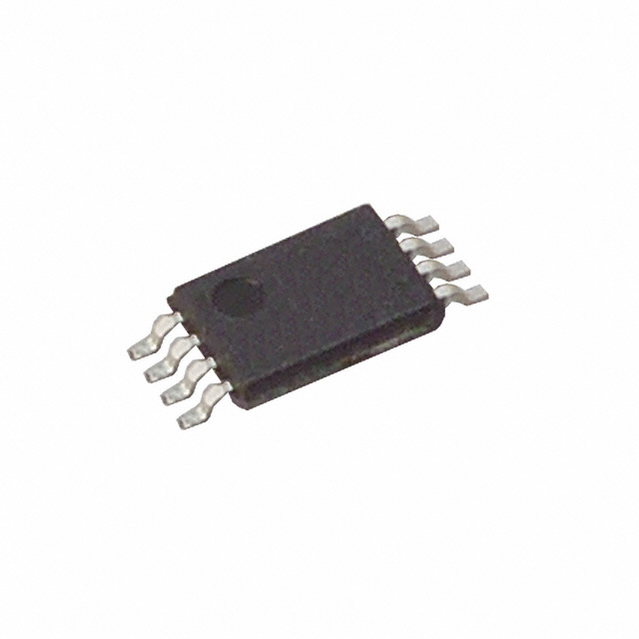

RC4580IPWG4

双路音频运算放大器 DUAL AUDIO OPERATIONAL AMPLIFIER

Description

The RC4580 device is a dual operational amplifier that has been designed optimally for audio

applications, such as improving tone control. It offers low noise, high gain bandwidth, low harmonic

distortion, and high output current, all of which make the device ideally suited for audio electronics, such

as preamplifiers, active filters, and industrial measurement equipment. When high output current is

required, the RC4580 device can be used as a headphone amplifier. Due to its wide operating supply

voltage, the RC4580 device can also be used in low voltage applications.

Features

• ±2-V to ±18-V Operating Voltage

• 0.8-μVrms Low Noise Voltage

• 12-MHz Gain Bandwidth Product

• 0.0005% Total Harmonic Distortion

• 5-V/μs Slew Rate

• Drop-In Replacement for NJM4580

• Pin and Function Compatible with LM833, NE5532, NJM4558/9, and NJM4560/2/5 devices

Applications

• Audio Preamplifiers

• Active Filters

• Headphone Amplifiers

• Industrial Measurement Equipment
