Fairchild Semiconductor无论您是进行新设计、还是采购,Fairchild 都可为您提供行业标准二极管和整流器、小信号二极管、Schottky 和 Zener 二极管。 部件提供最佳质量、功能和封装选项组合。
The is an Ultrafast Diode offers low forward voltage drop. This device is intended for use as freewheeling and clamping diodes in a variety of switching power supplies and other power switching applications. It is especially suited for use in switching power supplies applications.
额定电压DC 1.00 kV
额定电流 8.00 A
输出电流 ≤8.00 A
正向电压 1.8V @8A
极性 Standard
热阻 2℃/W RθJC
反向恢复时间 100 ns
正向电流 8 A
最大正向浪涌电流(Ifsm) 100 A
正向电压Max 1.8 V
正向电流Max 8 A
工作温度Max 175 ℃
工作温度Min -55 ℃
安装方式 Through Hole
引脚数 2

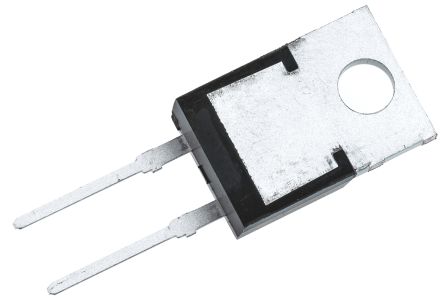

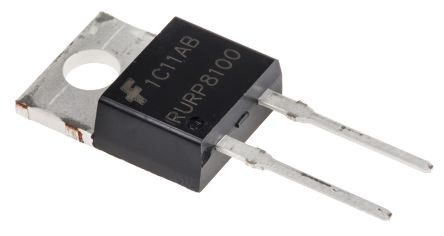

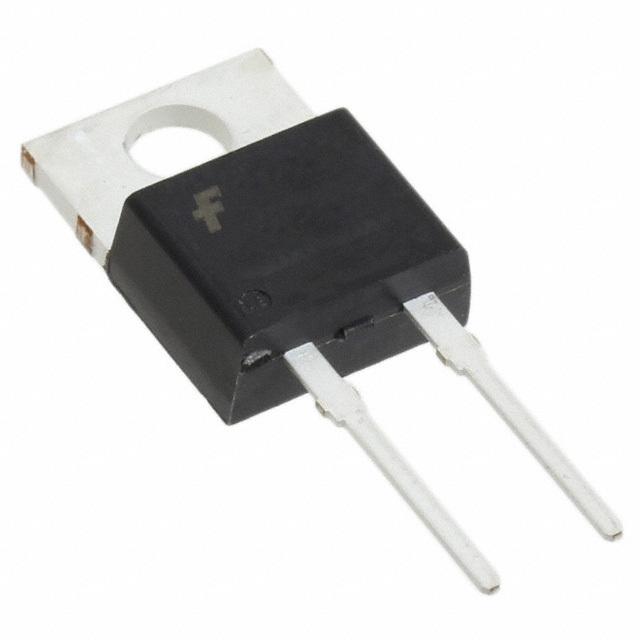

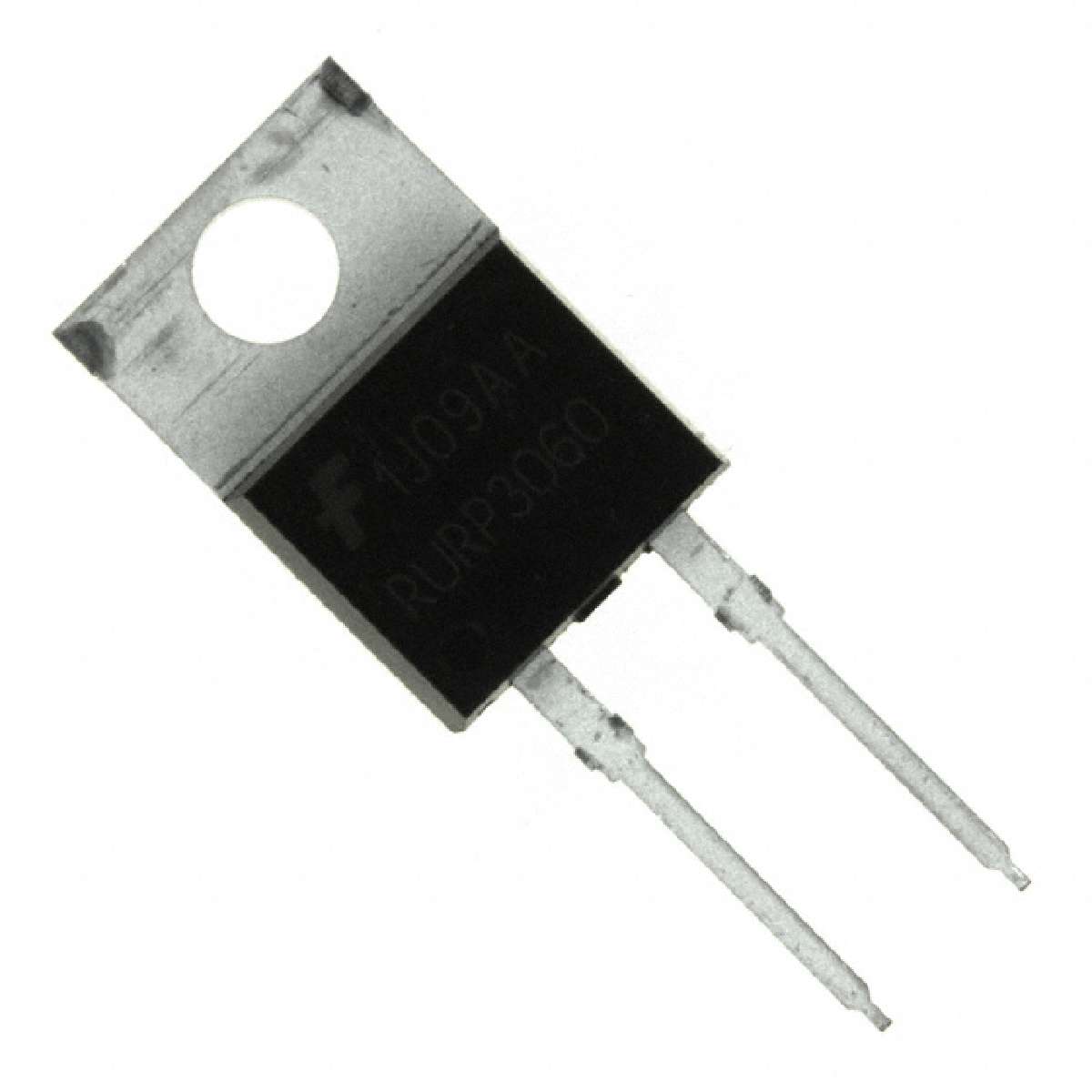

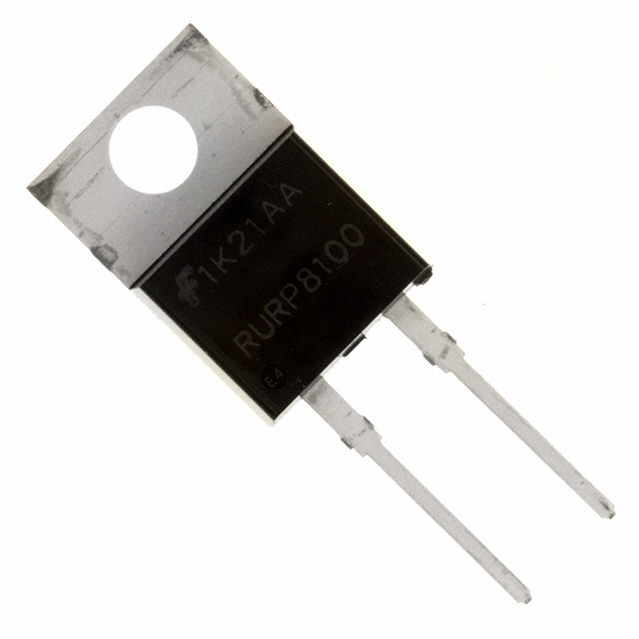

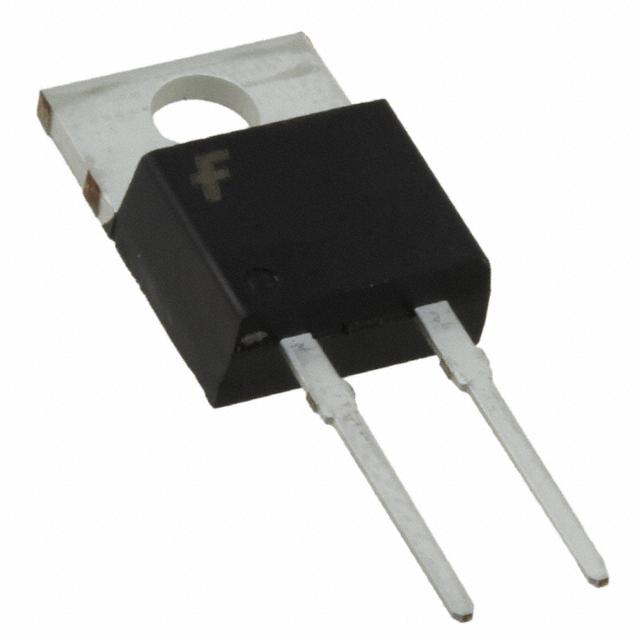

封装 TO-220-2
长度 10.67 mm
宽度 4.83 mm
高度 9.65 mm
封装 TO-220-2
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
RURP8100 Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
MUR8100EG 安森美 | 功能相似 | RURP8100和MUR8100EG的区别 |
APT15D100KG 美高森美 | 功能相似 | RURP8100和APT15D100KG的区别 |
MUR8100E 安森美 | 功能相似 | RURP8100和MUR8100E的区别 |
