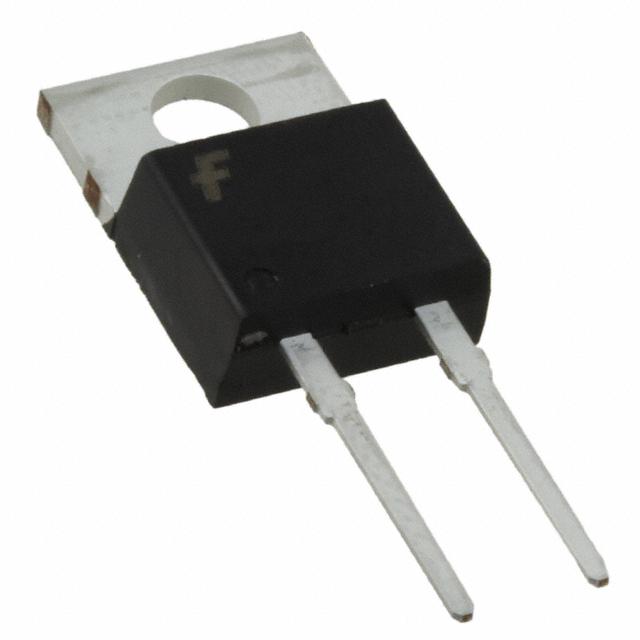

FAIRCHILD SEMICONDUCTOR RHRP1560 快速/超快功率二极管, 软恢复, 单, 600 V, 15 A, 2.1 V, 40 ns, 200 A
The is a Hyperfast Diode with soft recovery characteristics. It has the half recovery time of ultrafast diodes and is silicon nitride passivated ion-implanted epitaxial planar construction. This device is intended to be used as freewheeling/clamping diodes and diodes in a variety of switching power supplies and other power switching applications. Their low stored charge and hyperfast soft recovery minimize ringing and electrical noise in many power switching circuits reducing power loss in the switching transistors.
- .
- High reliability
- .
- Avalanche energy rated
- .
- 600VDC Blocking voltage
- .
- 100W Maximum power dissipation
- .
- 1.5°C/W Junction to case thermal resistance
额定电压DC 600 V
额定电流 15.0 A
电容 60.0 pF
输出电流 ≤15.0 A
正向电压 2.1 V
极性 Standard
耗散功率 100 W
热阻 1.5℃/W RθJC
反向恢复时间 40 ns
正向电流 15 A
最大正向浪涌电流（Ifsm） 200 A
正向电压Max 2.1 V
正向电流Max 15 A
工作温度Max 175 ℃
工作温度Min -65 ℃
工作结温Max 175 ℃
安装方式 Through Hole
引脚数 2
封装 TO-220-2
长度 10.67 mm
宽度 4.83 mm
高度 9.65 mm
封装 TO-220-2
工作温度 -65℃ ~ 175℃
产品生命周期 Active
包装方式 Each
制造应用 Power Management
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
RHRP1560 Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
RHRP860 飞兆/仙童 | 类似代替 | RHRP1560和RHRP860的区别 |
FES16GT 飞兆/仙童 | 类似代替 | RHRP1560和FES16GT的区别 |
FES16JTR 飞兆/仙童 | 类似代替 | RHRP1560和FES16JTR的区别 |
