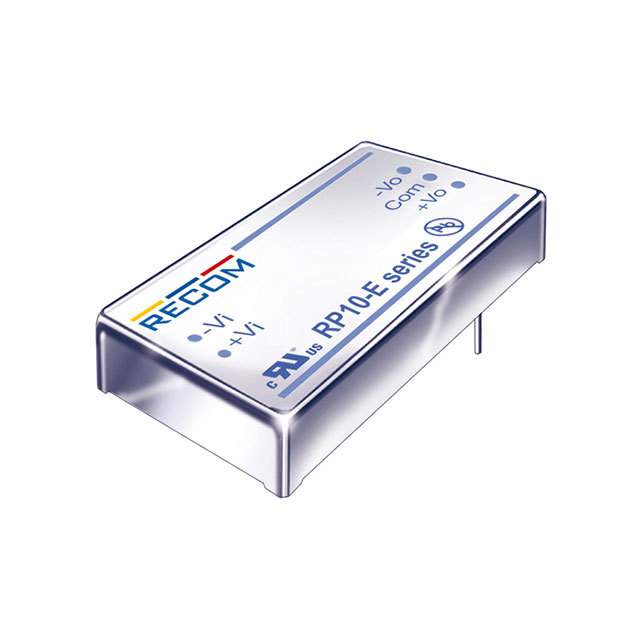

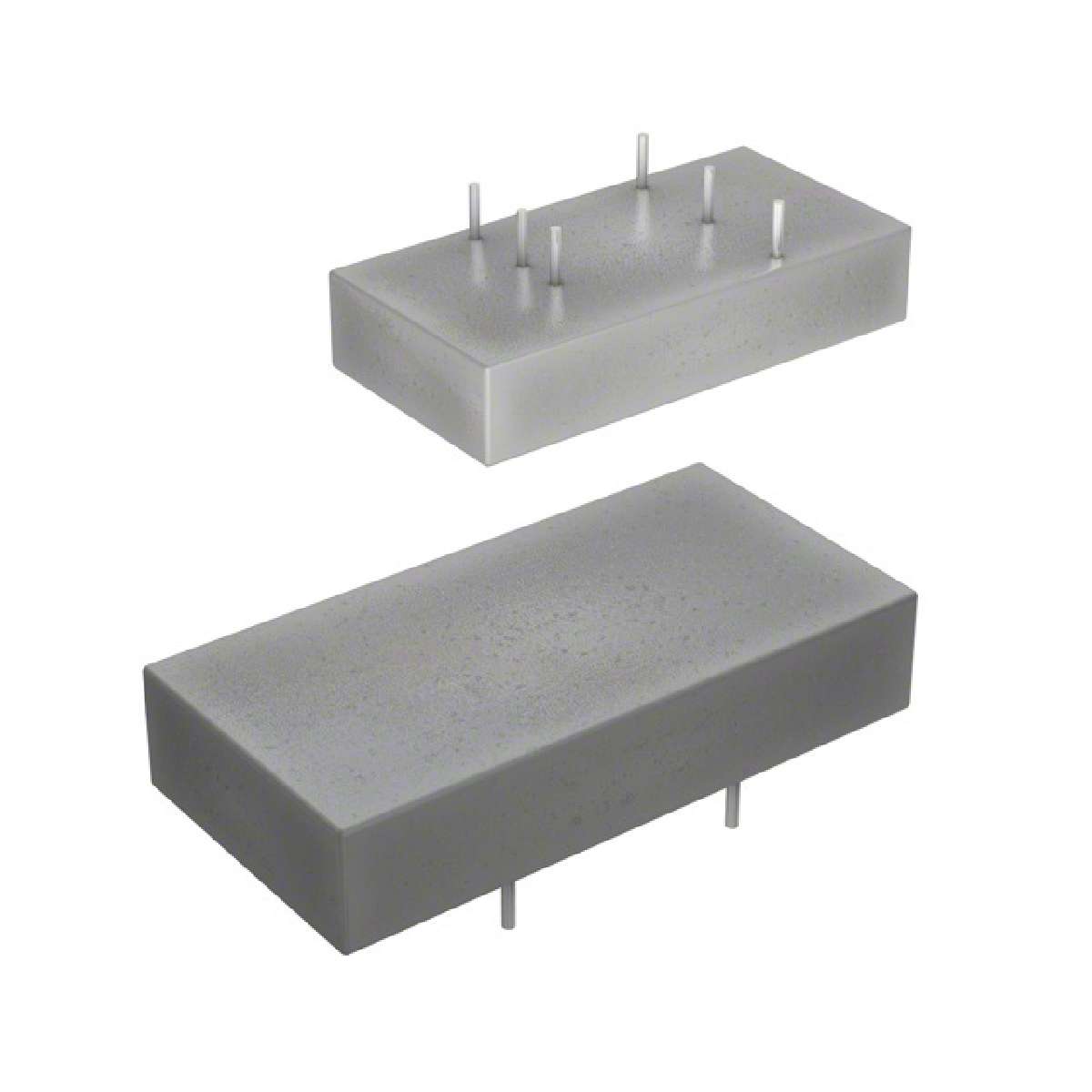

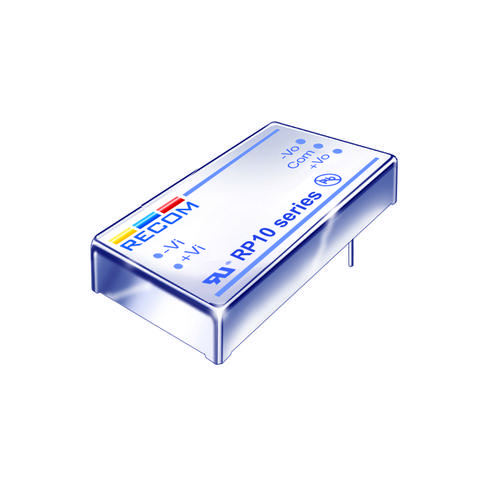

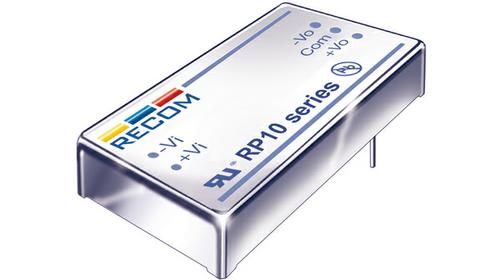

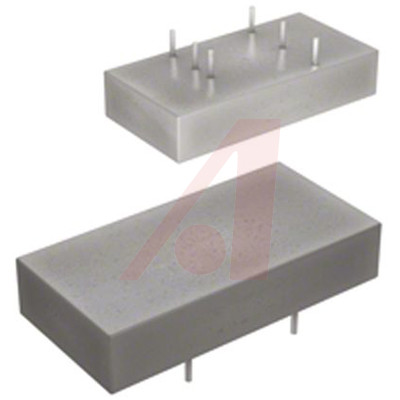

RP10-4805DE

10W 隔离式直流-直流转换器 / Vout ±5V, ±1000mA ±2%负载调节 ±1%线路调节

The RP10-E series DC/DC converterc are certified to UL 60950-1 and cUL 60950-1. This makes them ideal for all telecom and industrial applications where approved safety standards are required. The industry standard 2" × 1" package meets military standards for thermal shock and vibration tolerance and is available with an optional remote on/off control pin. This series is also available with the /M1 option which is particularly suitable for extended temperature range applications.

**Features**

* 2:1 Wide Input Voltage Range

* 10 W Output Power

* 1.6 kVDC Isolation

* UL Certified

* Fixed Operating Frequency

* Six-Sided Continuous Shield

* Standard 50.8 × 25.4 × 10.2 mm Package

* Efficiency to 86%
