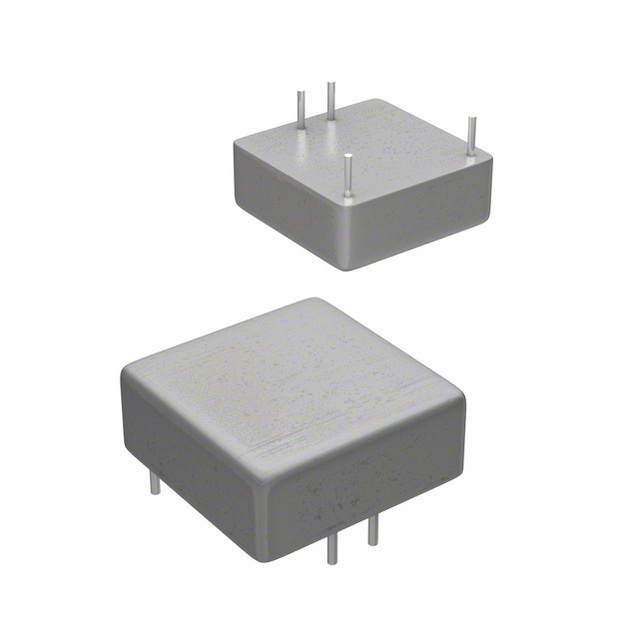

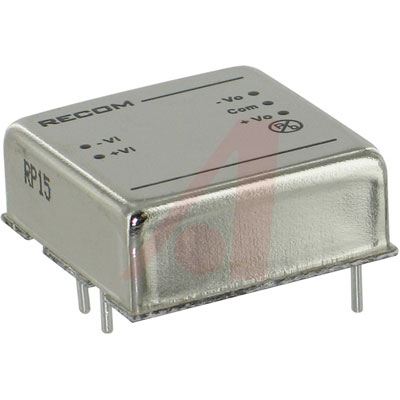

RP15-2412DA

15W 隔离式直流-直流转换器 / Vout ±12V, ±625mA ±1%负载调节 ±0.5%线路调节

The RP15-SA series are ultraminiature power DC/DC converters in a case half the size of industry standard 15 W converters. Despite their small size, the RP15-SA converters are fully specified devices with output currents up to 4 Amps, no minimum load, 1600 VDC isolation and low ripple/noise figures. The outputs are also fully protected against short circuits, overcurrent and overvoltage. The RP15-SA series will find many uses in applications where board space and/or board height is at a premium.

.

*Features**

* Ultraminiature 25.4 × 25.4 × 9.9 mm Package

* 15 W Output Power

* Single and Dual Outputs

* 1.6 kVDC Isolation

* Fixed Operating Frequency

* Six-Sided Continuous Shield

* Industry Standard Pinout

* Remote On/Off and Trim Pins

* Efficiency to 88%
