等级:X2 68nF ±20% 275VAC

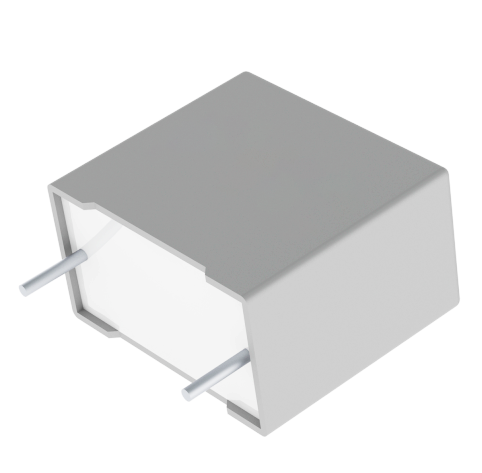

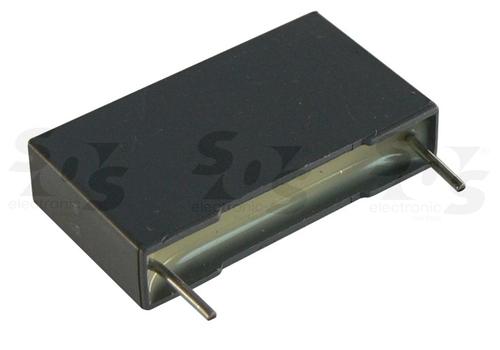

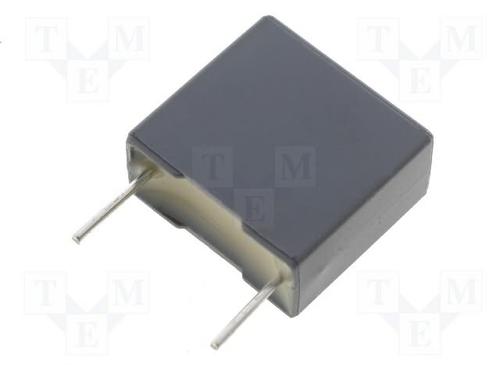

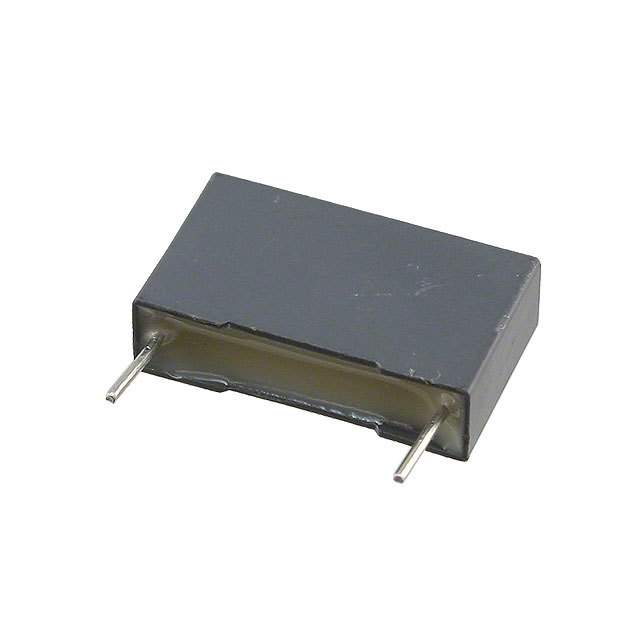

This film capacitor from Kemet is ideal for voltage smoothing, and would make any filter or audio based design better for the smoothest signal. It can withstand a voltage of 560 VDC|275VAC. This part has a maximum operating temperature of 125 °C. It has a tolerance of 20%. Its capacitance value is 0.068uF. This product is 18 mm long, 11 mm tall and 5 mm deep. This part has a lead diameter of 0.6 mm and a pitch of 15 mm. The R46KI26800001M part has a radial termination style.
额定电压DC 560 V
额定电压AC 275 V
电容 68 nF
容差 ±20 %
产品系列 R46
工作温度Max 110 ℃
工作温度Min -40 ℃
安装方式 Through Hole
引脚数 2
封装 Radial, Box
引脚间距 15 mm
长度 18 mm
宽度 5 mm
高度 11 mm
脚长度 4 mm
封装 Radial, Box
引脚间距 15 mm
工作温度 -40℃ ~ 110℃
产品生命周期 Active
包装方式 Bulk
寿命（小时） 1000 h
制造应用 EMI，RFI 抑制
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
R46KI26800001M KEMET Corporation 基美 | 当前型号 | 当前型号 |
R46KI268000S0M 基美 | 类似代替 | R46KI26800001M和R46KI268000S0M的区别 |
R46KI26805101M 基美 | 功能相似 | R46KI26800001M和R46KI26805101M的区别 |
R46KI26805201M 基美 | 功能相似 | R46KI26800001M和R46KI26805201M的区别 |
