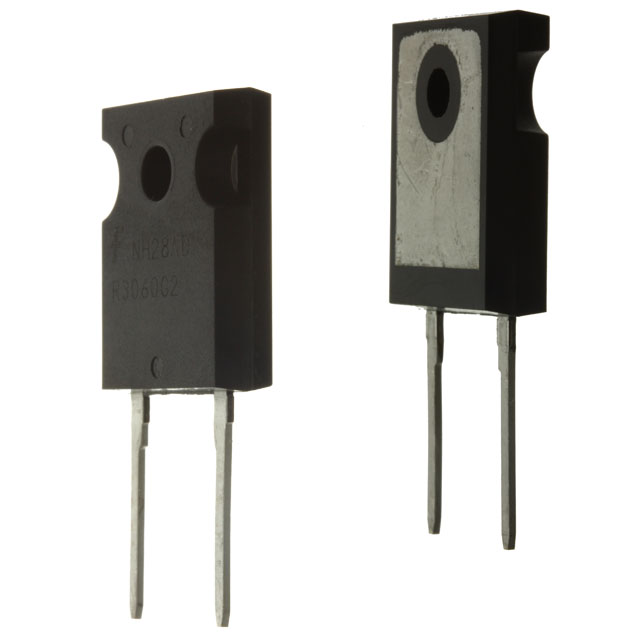

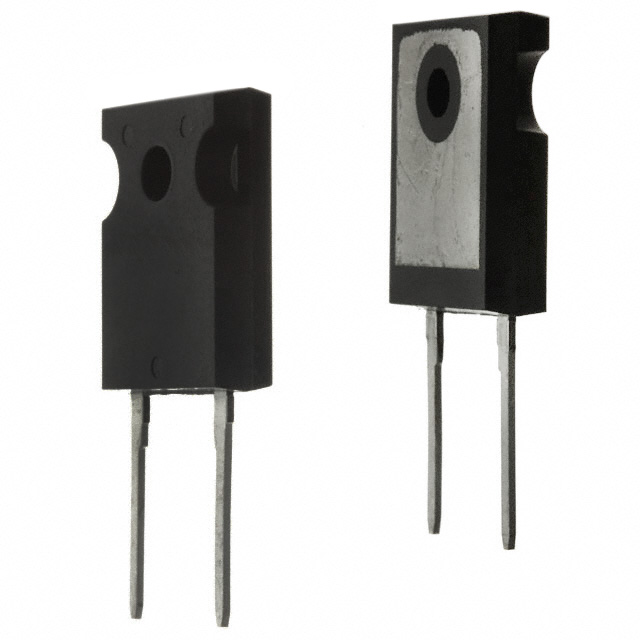

FAIRCHILD SEMICONDUCTOR RHRG3060 快速/超快二极管, 单, 600 V, 30 A, 2.1 V, 45 ns, 325 A
The is a hyper-fast Ultra-fast Diode with soft-recovery characteristics. It has the half recovery time and is silicon nitride passivated ion-implanted epitaxial planar construction. It is intended to be used as free-wheeling/clamping diodes and diodes in a variety of switching power supplies and other power switching applications. Their low stored charge and hyper-fast soft recovery minimize ringing and electrical noise in many power switching circuits reducing power loss in the switching transistors.
- .
- Avalanche energy rated
额定电压DC 600 V
额定电流 30.0 A
电容 85.0 pF
输出电流 ≤30.0 A
正向电压 2.1V @30A
极性 Standard
热阻 1.2℃/W RθJC
反向恢复时间 45 ns
正向电流 30 A
最大正向浪涌电流（Ifsm） 325 A
正向电压Max 2.1 V
正向电流Max 30 A
工作温度Max 175 ℃
工作温度Min -65 ℃
安装方式 Through Hole
引脚数 2
封装 TO-247-2
长度 15.8 mm
宽度 4.82 mm
高度 20.8 mm
封装 TO-247-2
工作温度 -65℃ ~ 175℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
RHRG3060 Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
DSEI120-12A IXYS Semiconductor | 功能相似 | RHRG3060和DSEI120-12A的区别 |
APT30D60BG 美高森美 | 功能相似 | RHRG3060和APT30D60BG的区别 |
