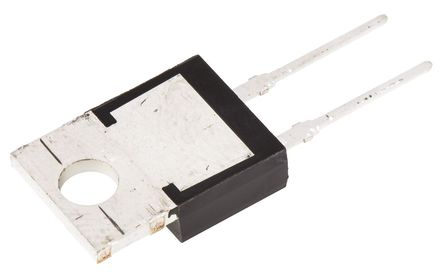

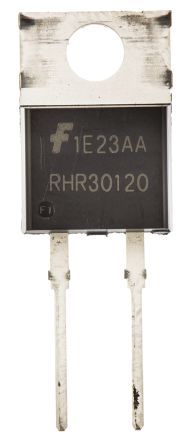

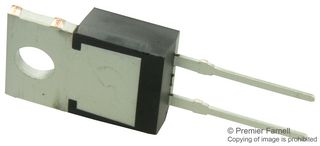

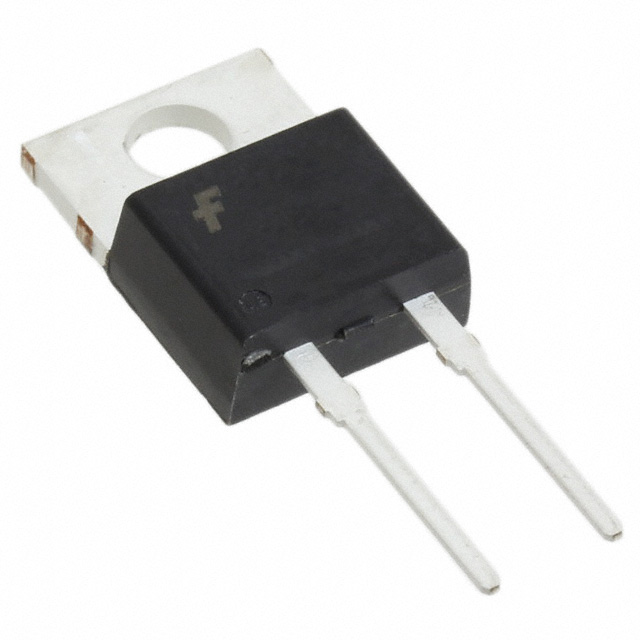

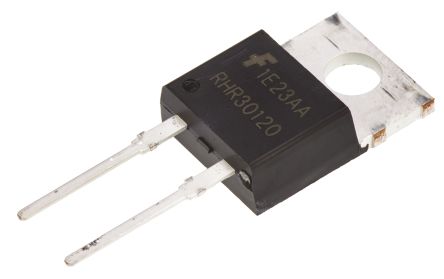

FAIRCHILD SEMICONDUCTOR RHRP30120... 整流二极管, 30A 超快恢复
The is a hyper-fast Ultra-fast Diode with soft-recovery characteristics. It has the half recovery time and is silicon nitride passivated ion-implanted epitaxial planar construction. It is intended to be used as free-wheeling/clamping diodes and diodes in a variety of switching power supplies and other power switching applications. Their low stored charge and hyper-fast soft recovery minimize ringing and electrical noise in many power switching circuits reducing power loss in the switching transistors.
- .
- Avalanche energy rated
- .
- High reliability
额定电压DC 1.20 kV
额定电流 30.0 A
输出电流 ≤30.0 A
正向电压 3.2V @30A
极性 Standard
热阻 1.2℃/W RθJC
反向恢复时间 85 ns
正向电流 30 A
最大正向浪涌电流（Ifsm） 300 A
正向电压Max 3.2 V
正向电流Max 30 A
工作温度Max 175 ℃
工作温度Min -65 ℃
安装方式 Through Hole
引脚数 2

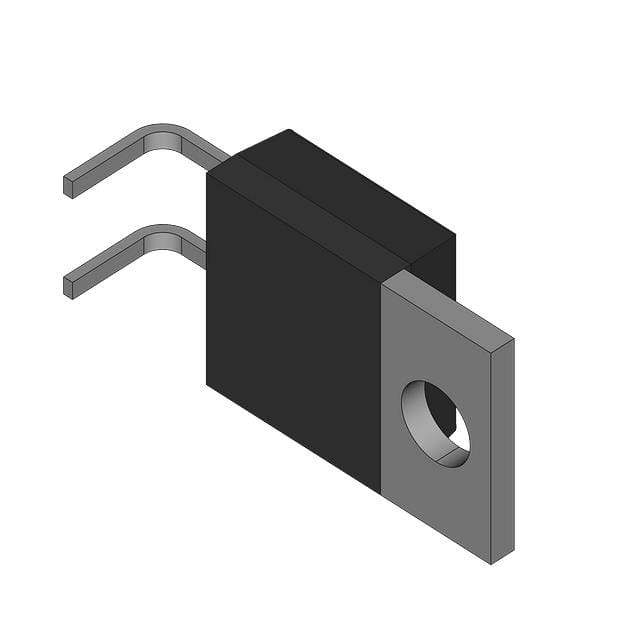

封装 TO-220-2
长度 10.67 mm
宽度 4.83 mm
高度 9.65 mm
封装 TO-220-2
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
RHRP30120 Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
DSEI20-12A IXYS Semiconductor | 功能相似 | RHRP30120和DSEI20-12A的区别 |
20ETS12PBF 威世 | 功能相似 | RHRP30120和20ETS12PBF的区别 |
20ETS12 威世 | 功能相似 | RHRP30120和20ETS12的区别 |
