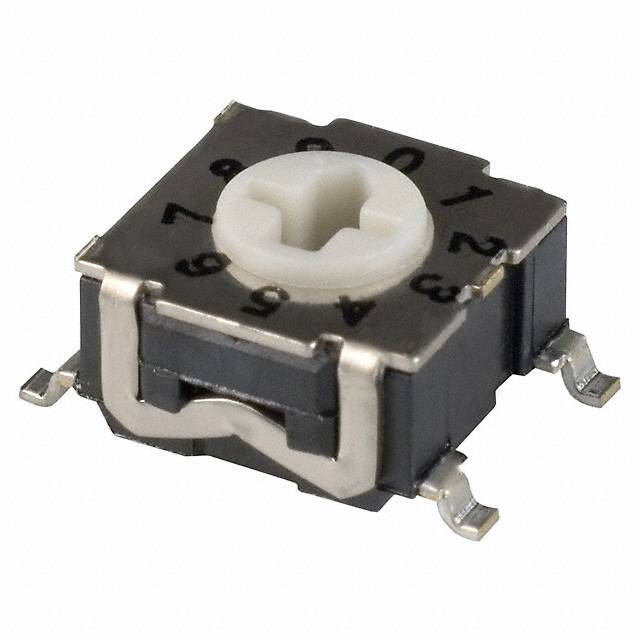

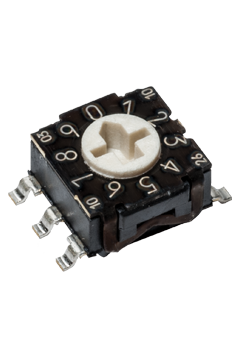

RTE 系列 SP10T 0.1 A 30 VDC 鸥翼 薄型 旋转 DIP 开关
Low Profile Rotary DIP
得捷:
SWITCH ROTARY DIP BCD 100MA 30V
立创商城:
拨码开关 DIP Switch
艾睿:
Add current flow control to your printed circuit simply through the use of C&a;K Components&s; RTE1000G14 dual in-line package switch. It has a SP10T configuration. This device has a maximum current rating of 0.1 A @ 30VDC. This DIP switch has an operating temperature range of -25 °C to 85 °C. The RTE1000G14 DIP switch has a gull wing termination style. This product is 7.4 mm long, 4.25 mm tall and 10 mm deep. The maximum DC voltage rating is 30 VDC.
安富利:
Switch DIP SP10T 10 Flush Screwdriver 0.1A 30VDC Gull Wing 20000Cycle SMD T/R
Chip1Stop:
Switch DIP SP10T 10 Screwdriver 0.1A 30VDC Gull Wing 20000Cycles SMD T/R
TME:
Encoding switch; HEX/BCD; Positions:10; SMT; Rcont max:100mΩ
Verical:
Switch DIP N.O./N.C. SP10T 10 Flush Screwdriver 0.1A 30VDC Gull Wing 20000Cycles SMD T/R
Newark:
# C & K COMPONENTS RTE1000G14 DIP / Rotary DIP
儒卓力:
**ROTARY DIP SWITCH, SMD, 10 POS **
MASTER:
Low Profile Rotary DIP
Online Components:
Low Profile Rotary DIP
Electro Sonic:
Low Profile Rotary DIP
额定电压DC 30 V
额定电流 100 mA
方向 Vertical
针脚数 10
额定电流Max 0.1A @30VDC
工作温度Max 85 ℃
工作温度Min -25 ℃
额定电压 30 VDC
额定电压DC Max 30 V
接触电阻Max 100 mΩ
安装方式 Surface Mount
封装 SMD
长度 7.40 mm
宽度 7.2 mm
高度 4.25 mm
封装 SMD
触点材质 Bronze
工作温度 -25℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509065
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
RTE1000G14 C&K Components | 当前型号 | 当前型号 |
RTE1000G13 C&K Components | 功能相似 | RTE1000G14和RTE1000G13的区别 |
