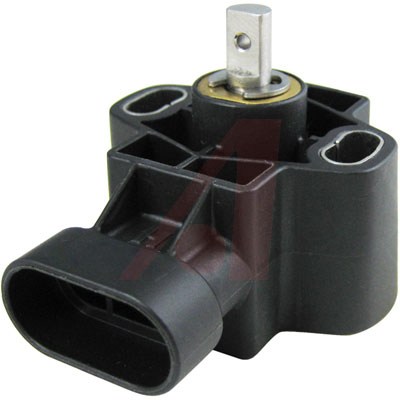

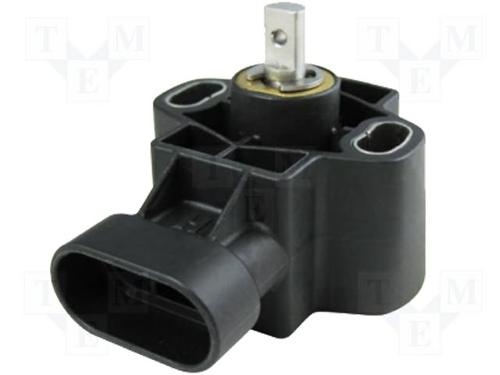

HONEYWELL RTY120LVEAX 位置传感器, 旋转, 霍尔效应, 120度, 5V
The RTY series hall-effect rotary Position Sensor that provide angle monitoring in harsh transportation and industrial applications at a competitive cost. These products use a magnetically biased, Hall-effect integrated circuit IC to sense rotary movement of the actuator shaft over a set operating range. Rotation of the actuator shaft changes a magnet"s position relative to the IC. The resulting flux density change is converted to a linear output. The IC, together with conditioning and protection circuitry and the permanent magnet, is sealed in an IP67-qualified rugged package for durability in most harsh environments. Eight operating ranges 50°, 60°, 70°, 90°, 120°, 180°, 270° and 360° are tolerant to over-travel and allow use in most common applications. Low voltage and high voltage versions cover an input voltage range of 4.5 to 30Vdc. Most applications require no lever and no brackets are necessary.
电阻 10 kΩ
输出电压Max 4.5 V
输出电压Min 500 mV
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±1.6 %
额定电压 5 VDC
电源电压 5 V
安装方式 Chassis
引脚数 3
封装 120
高度 40.6 mm
封装 120
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
制造应用 Agriculture, 工业, 车用, Industrial, 传感与仪器, Sensing & Instrumentation, Automotive, HVAC, 农业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 8543704000
