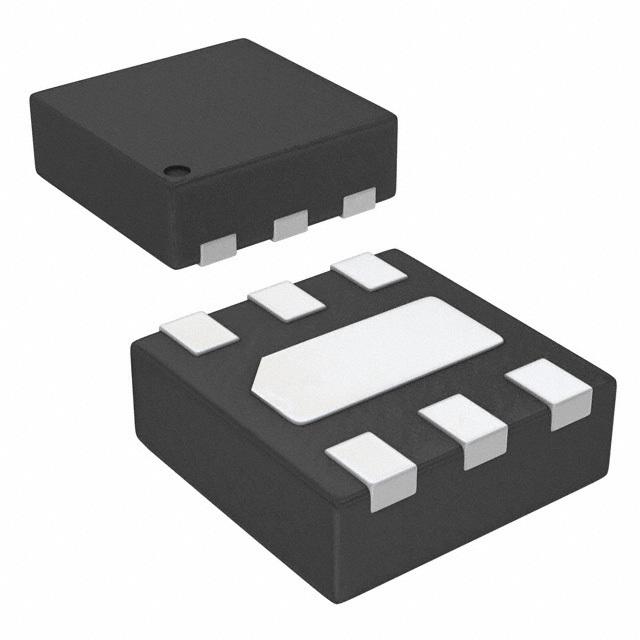

SEMTECH RCLAMP0504P.TCT TVS二极管, TVS, RailClamp系列, 5 V, 18 V, SLP1616P6, 2 引脚
The RailClamp series ultra-low capacitance TVS Array designed to protect high speed data interfaces. It is specifically designed to protect sensitive components which are connected to high-speed data and transmission lines from overvoltage caused by ESD electrostatic discharge, CDE Cable Discharge Events and EFT electrical fast transients. The device has a typical capacitance of only 0.50pF pin 1 to 2, used on circuits operating in excess of 3GHz without signal attenuation. It is used to meet the ESD immunity requirements of IEC 61000-4-2, level 4 ±15kV air, ±8kV contact discharge. Each device can be configured to protect 1 bidirectional line or two unidirectional lines. It is designed for use in applications where board space is at a premium. The combination of small size, low capacitance and high level of ESD protection makes them a flexible solution for applications such as HDMI, MDDI, antenna circuits, Automatic Test Equipment, USB 2.0 and InfiniBand circuits.
工作电压 5 V
电容 1.9 pF
击穿电压 6 V
针脚数 2
耗散功率 100 W
钳位电压 18 V
测试电流 1 mA
最大反向击穿电压 6 V
脉冲峰值功率 150 W
最小反向击穿电压 6 V
击穿电压 6 V
工作温度Max 125 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 6
封装 UFDFN-6
长度 1.6 mm
宽度 1.6 mm
高度 0.55 mm
封装 UFDFN-6
工作温度 -55℃ ~ 125℃ TJ
产品生命周期 Not Recommended
包装方式 Tape & Reel TR
制造应用 Power Management, Communications & Networking, 多媒体, Industrial, 传感与仪器, Imaging, Video & Vision, Sensing & Instrumentation, 通信与网络, 射频通信, Multimedia, Computers & Computer Peripherals, 视频和目视, 电源管理, 工业, RF Communications, 成像, 以太网,多媒体卡接口,USB OTG, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
RCLAMP0504P.TCT Semtech Corporation | 当前型号 | 当前型号 |
RCLAMP0502N.TCT Semtech Corporation | 类似代替 | RCLAMP0504P.TCT和RCLAMP0502N.TCT的区别 |
RCLAMP1654P.TCT Semtech Corporation | 类似代替 | RCLAMP0504P.TCT和RCLAMP1654P.TCT的区别 |
