Semtech### 瞬态电压抑制器,Semtech

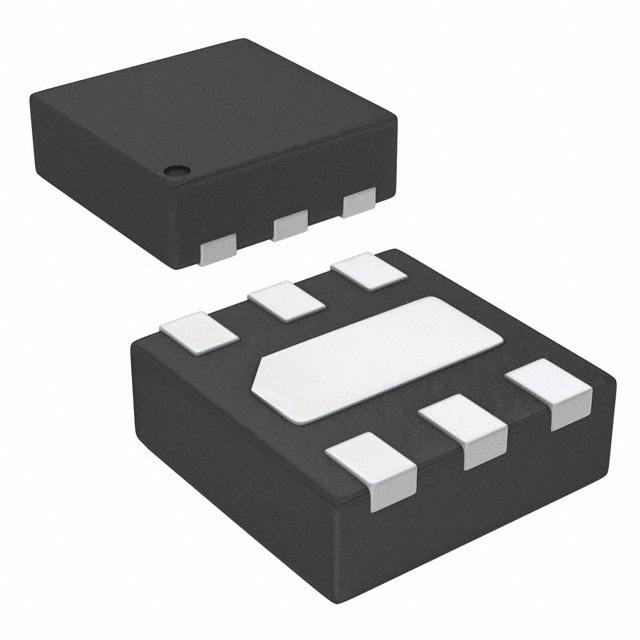

30V 夹子 3A(8/20µs) Ipp TVS - 表面贴装型 SLP1616P6(1.6x1.6)
欧时:
RailClamp Low-Capacitance TVS Array
得捷:
TVS DIODE 5.5VWM 30VC SLP1616P6
立创商城:
Vrwm:5.5V@Max 100W
艾睿:
This RCLAMP1654P.TCT TVS diode developed by Semtech can help protect your expensive equipment and electronics. Its peak pulse power dissipation is 200 W. This device&s;s maximum clamping voltage is 30 V and minimum breakdown voltage is 6.5 V. Its test current is 1 mA. Its maximum leakage current is 1 μA. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery.
安富利:
Diode TVS Dual Uni-Dir 5.5V 200W 6-Pin SLP EP T/R
TME:
Diode: transil; 6.5V; 3A; unidirectional; 100W; SLP1616P6
Win Source:
TVS DIODE 5.5VWM 30VC
额定功率 100 W
击穿电压 6.5 V
钳位电压 30 V
最大反向电压(Vrrm) 5.5V
测试电流 1 mA
脉冲峰值功率 200 W
最小反向击穿电压 6.5 V
工作温度Max 125 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 125℃
安装方式 Surface Mount
引脚数 6
封装 UFDFN-6
长度 1.6 mm
宽度 1.6 mm
高度 0.55 mm
封装 UFDFN-6
工作温度 -55℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 USB OTG
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
RCLAMP1654P.TCT Semtech Corporation | 当前型号 | 当前型号 |
RCLAMP0504P.TCT Semtech Corporation | 类似代替 | RCLAMP1654P.TCT和RCLAMP0504P.TCT的区别 |
RCLAMP0522P.TCT Semtech Corporation | 类似代替 | RCLAMP1654P.TCT和RCLAMP0522P.TCT的区别 |
RCLAMP0502N.TCT Semtech Corporation | 类似代替 | RCLAMP1654P.TCT和RCLAMP0502N.TCT的区别 |
