RCLAMP0504F.TCT

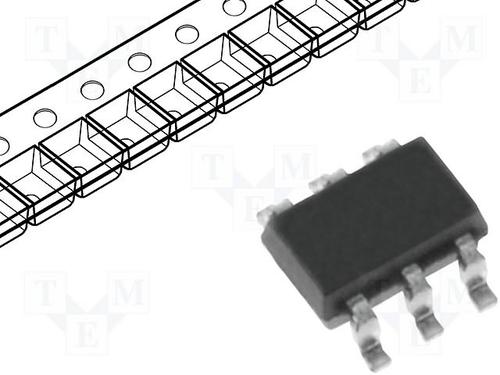

SEMTECH  RCLAMP0504F.TCT  TVS二极管, TVS, RailClamp系列, 5 V, 25 V, SC-70, 6 引脚

极性Polarization| 双向 Bidirectional

\---|---

反向关断电压/工作电压VRWMReverse Standoff Voltage| 5V

反向击穿电压VBRBreakdown Voltage| 6V

峰值脉冲耗散功率PPPMPeak Pulse Power Dissipation| 150W

峰值脉冲电流IPPmPeak Forward Surge Current| 6A

额定耗散功率PdPower dissipation|

Description & Applications| FEATURES •Low Capacitance TVS Array •Transient protection for high-speed data lines to IEC 61000-4-2 ESD ±15kV air, ±8kV contact IEC 61000-4-4 EFT 40A 5/50ns •Array of surge rated diodes with internal TVS Diode •Small package 2.4 x 2.2mm saves board space •Protects up to four I/O lines & power line •Low capacitance <3pF for high-speed interfaces •No insertion loss to •Low leakage current and clamping voltage •Low operating voltage: 5.0V •Solid-state silicon-avalanche technology

描述与应用| 特性 •低电容TVS阵列 •瞬态保护高速数据线 IEC61000-4-2（ESD）±15kV（空气），±8kV（接触） IEC61000-4-4（EFT）40A（5/50ns） •额定浪涌阵列内部TVS二极管 •小包装（2.4×2.2毫米）节省电路板空间 •保护四个I / O线和电源线 •高速接口低电容（<3PF） •没有插入损耗 •低漏电流和钳位电压 •低工作电压：5.0V •固态硅雪崩科技
