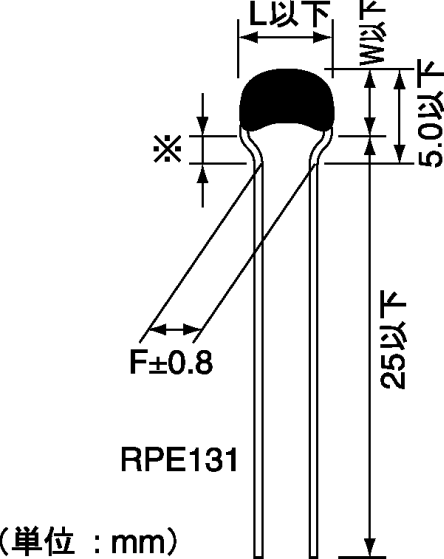

Laminated Ceramic RPE SeriesFlame resistant type using a flame resistant epoxy resin corresponding to UL-94V-0 as the external coating. It has low internal impedance and may be used for high frequency applications. CH dielectric is temperature compensating. Lead diameter 0.5mm, length 25. technical specification --- Epoxy Coat Radial Type | SizeLxWxH | 5.0x3.5x2.51∼1000pF | 5.0x3.5x3.51100∼4300pF Lead Spacing | P1=2.5mm, P2=5.0mm Temperature range | -55°C to +125°CCH/R | -25°C to +85°CF Temperature Characteristics Rate | ±60ppm/°CCH of change | Type | Temperature-Compensating | Type CH | High Dielectric ConstantR | High Dielectric ConstantF Temperature Characteristics | ±10% variation within the temperature | range | | ±15% R | +30, -80% F selection guide --- Stock Number | Type | Capacitance pF | Rated Voltage V | Capacity Tolerance | Lead Spacing 318-1809 | CH | 33 | 50 | ±5% | P1 318-1837 | CH | 1000 | 50 | ±5% | P1 318-1900 | R | 10000 | 50 | ±10% | P1 318-1922 | R | 100000 | 50 | ±10% | P1 318-1988 | R | 100000 | 50 | ±10% | P2 318-2010 | F | 100000 | 50 | +80, -20% | P2 ### 径向陶瓷### X8R 电介质
Laminated Ceramic RPE Series
Flame resistant type using a flame resistant epoxy resin corresponding to UL-94V-0 as the external coating. It has low internal impedance and may be used for high frequency applications.
CH dielectric is temperature compensating.
Lead diameter 0.5mm, length 25.
### X7R 电介质
欧时:
Murata 1nF 50V dc CH电介质 通孔 多层陶瓷电容器 MLCC RPE2C1H102J2P1D01B, ±5%容差
艾睿:
Cap Ceramic 0.001uF 50V CH 5% Radial 2.5mm 125
Chip1Stop:
Cap Ceramic 0.001uF 50V CH 5% Radial 2.5mm 125ÂÂ℃ Bulk
Verical:
Cap Ceramic 0.001uF 50V CH 5% Radial 2.5mm 125C Bulk
