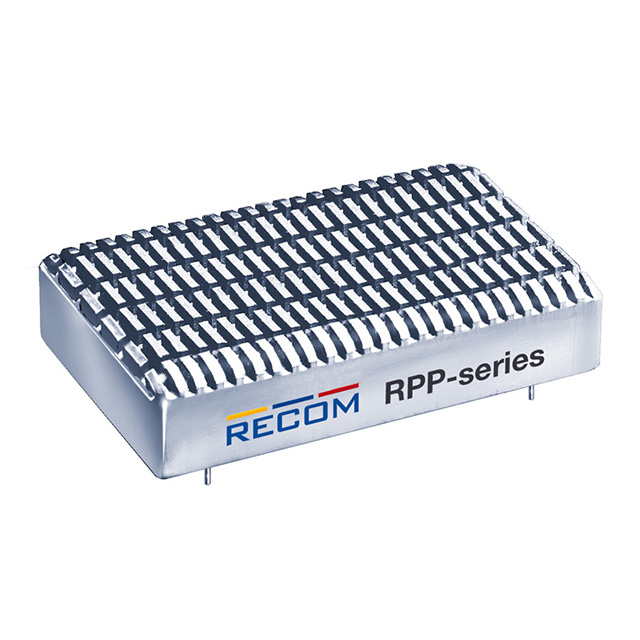

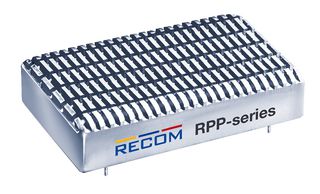

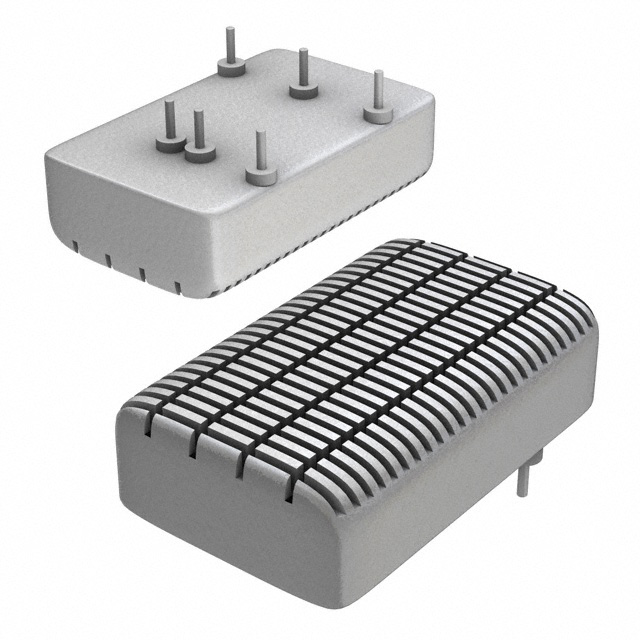

Module DC-DC 24Vin 1Out 12V 3.33A 40W 5Pin Tube
Isolated Module DC DC Converter 1 Output 12V 3.33A 9V - 36V Input
得捷:
DC DC CONVERTER 12V 40W
艾睿:
Provide the ability to switch between voltages by using this step down RPP40-2412SW DC to DC converter and switching regulator module. It has a voltage of 12 V. This part has a minimum operating temperature of -45 °C and a maximum of 87 °C. This device comes in tube packaging.
Chip1Stop:
Module DC-DC 1-OUT 12V 3.33A 40W 5-Pin Tube
Newark:
# RECOM POWER RPP40-2412SW Isolated Board Mount DC/DC Converter, ICE Technology, Fixed, Adjustable, 1 Output, 9 V, 36 V, 40 W
额定功率 40 W
输出接口数 1
输出电压 12 V
输出电流 3.33 A
输出功率 40 W
隔离电压 3 kV
开关频率 300 kHz
输入电压Max 36 V
输入电压Min 9 V
输入电压DC Max 36 V
输入电压DC Min 9 v
输出电流Max 3.33 A
输出功率Max 40 W
工作温度Min -45 ℃
输入电压 9V ~ 36V
安装方式 Through Hole
引脚数 5
封装 DIP-6
宽度 30.5 mm
高度 11.7 mm
封装 DIP-6
工作温度 -45℃ ~ 75℃
产品生命周期 Active
包装方式 Tube
制造应用 ITE（商业）
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
