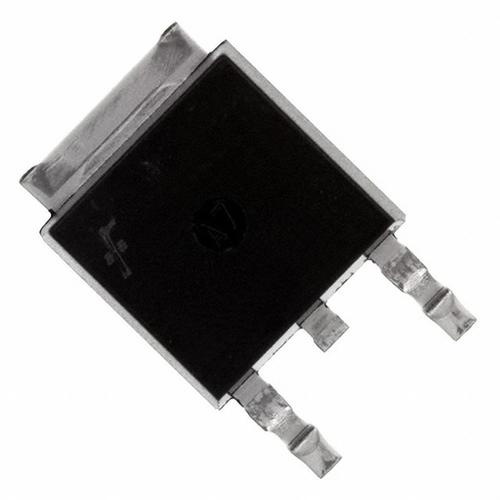

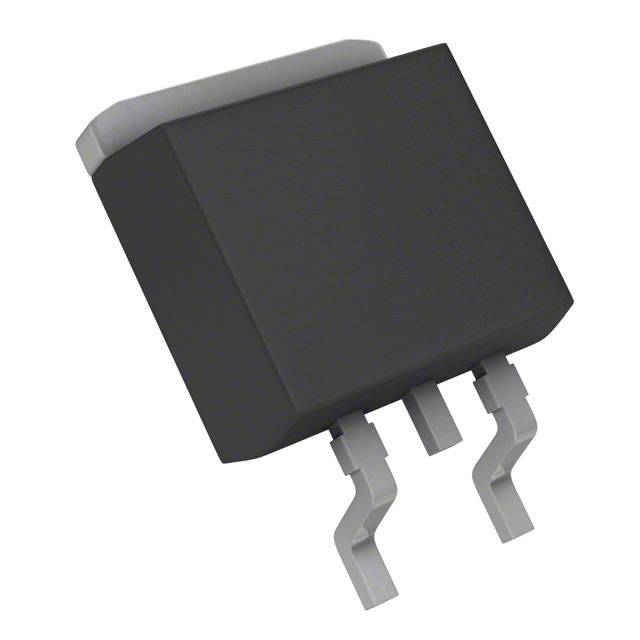

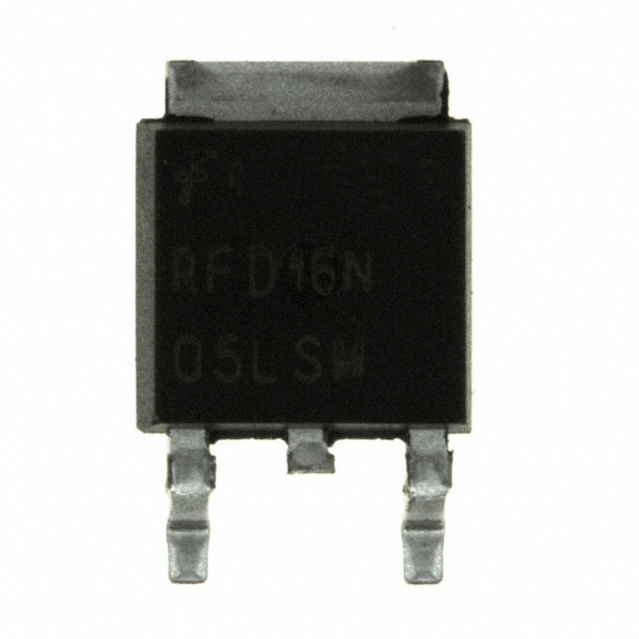

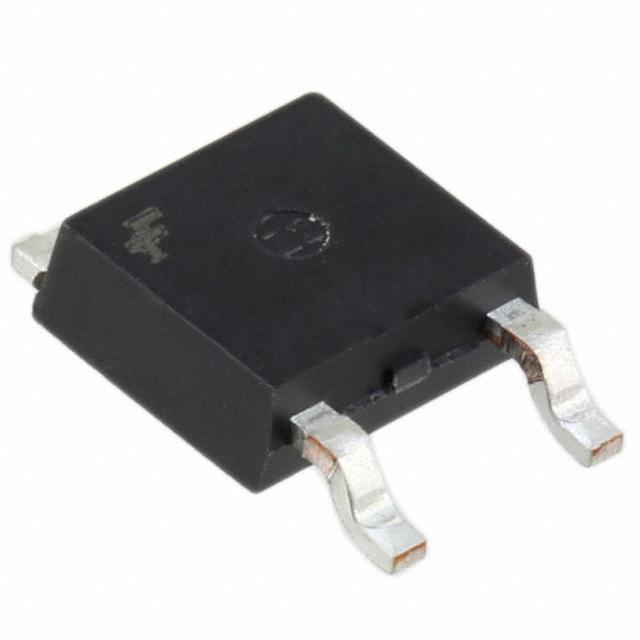

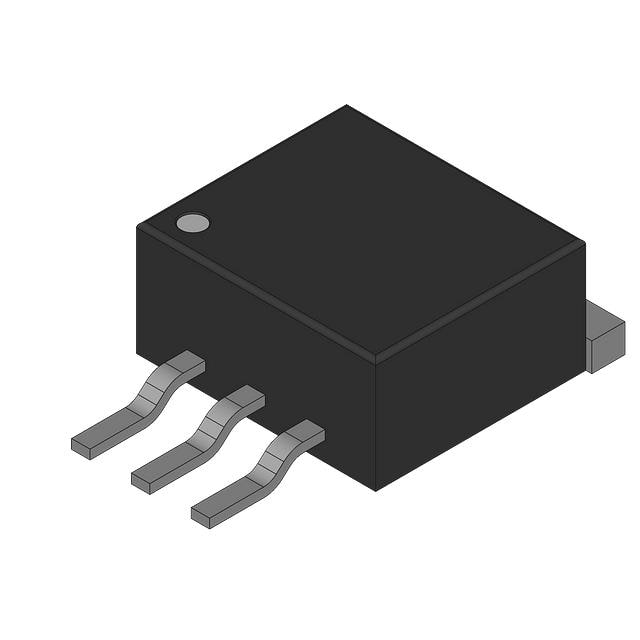

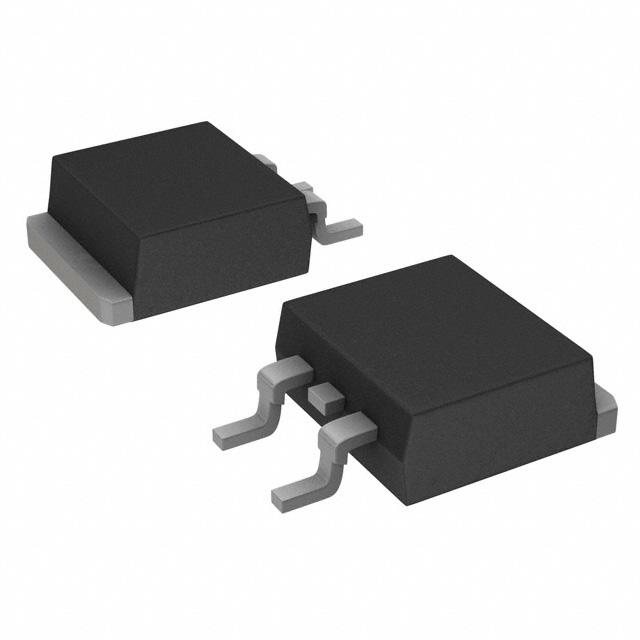

16A , 50V , 0.047欧姆,逻辑电平, N沟道功率MOSFET 16A, 50V, 0.047 Ohm, Logic Level, N-Channel Power MOSFETs
directly from logic circuit supply voltages. 5V range, thereby facilitating true on-off power control provides full rated conductance at gate biases in the 3V to accomplished through a special gate oxide design which switches for bipolar transistors. This performance is
switching converters, motor relay drivers and emitter such as programmable controllers, switching regulators, These are N-Channel logic level power MOSFETs manufactured using the MegaFET process. This process, which uses feature sizes approaching those of LSI
integrated circuits gives optimum utilization of silicon, resulting in outstanding performance. They were designed for use with logic level 5V driving sources in applications
Features
• 16A, 50V
•rDSON= 0.047Ω
• UIS SOA Rating Curve Single Pulse
• Design Optimized for 5V Gate Drives
• Can be Driven Directly from CMOS, NMOS, TTL Circuits
• SOA is Power Dissipation Limited
• Nanosecond Switching Speeds
• Linear Transfer Characteristics
• High Input Impedance
• Majority Carrier Device
• Related Literature
\- TB334 “Guidelines for Soldering Surface Mount
Components to PC Boards”
额定电压DC 50.0 V
额定电流 16.0 A
漏源极电阻 47.0 mΩ
极性 N-Channel
耗散功率 60W Tc
栅电荷 80.0 nC
漏源极电压Vds 50 V
漏源击穿电压 50.0 V
栅源击穿电压 ±10.0 V
连续漏极电流Ids 16.0 A
上升时间 30 ns
额定功率Max 60 W
下降时间 14 ns
耗散功率Max 60W Tc
安装方式 Surface Mount
引脚数 3
封装 TO-252-3
封装 TO-252-3
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Obsolete
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
RFD16N05LSM Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
RFD16N05LSM9A 飞兆/仙童 | 类似代替 | RFD16N05LSM和RFD16N05LSM9A的区别 |
