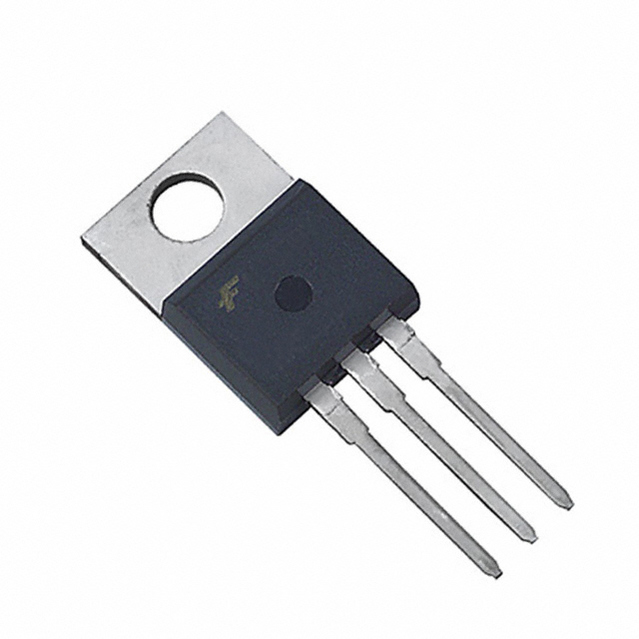

RFP3055

12A ， 60V ， 0.150 Ohm的N通道功率MOSFET 12A, 60V, 0.150 Ohm, N-Channel Power MOSFETs

These are N-Channel enhancement mode silicon gate power field effect transistors. They are advanced power MOSFETs designed, tested, and guaranteed to withstand a

specified level of energy in the breakdown avalanche mode of operation. All of these power MOSFETs are designed for applications such as switching regulators, switching

convertors, motor drivers, relay drivers, and drivers for high power bipolar switching transistors requiring high speed and low gate drive power. These types can be operated directly from integrated circuits. Formerly developmental type TA49082.

Features

• 12A, 60V

•rDSON= 0.150Ω

• Temperature Compensating PSPICE®Model

• Peak Current vs Pulse Width Curve

• UIS Rating Curve

• 175oC Operating Temperature

• Related Literature

\- TB334 “Guidelines for Soldering Surface Mount

Components to PC Boards”
