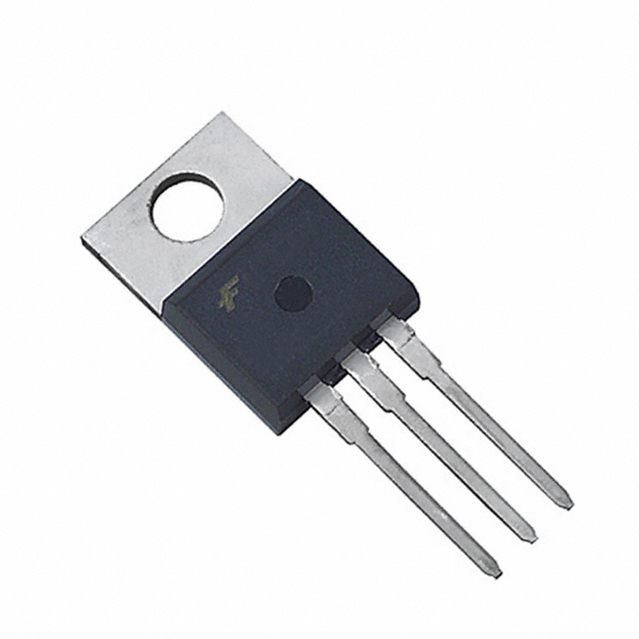

RFP30N06LE

30A ， 60V ， ESD额定， 0.047欧姆，逻辑电平N沟道功率MOSFET 30A, 60V, ESD Rated, 0.047 Ohm, Logic Level N-Channel Power MOSFETs

These are N-Channel power MOSFETs manufactured using the MegaFET process. This process, which uses feature sizes approaching those of LSI integrated circuits gives optimum utilization of silicon, resulting in outstanding performance. They were designed for use in applications such as switching regulators, switching converters, motor drivers and relay drivers. These transistors can be operated directly from integrated circuits.

Features

• 30A, 60V

• rDSON = 0.047Ω

• 2kV ESD Protected

• Temperature Compensating PSPICE® Model

• Peak Current vs Pulse Width Curve

• UIS Rating Curve

• Related Literature

   - TB334 “Guidelines for Soldering Surface Mount Components to PC Boards”
