15A , 50V和60V , 0.140欧姆,逻辑电平N沟道功率MOSFET 15A, 50V and 60V, 0.140 Ohm, Logic Level N-Channel Power MOSFETs
15A, 50V and 60V, 0.140 Ohm, Logic Level N-Channel Power MOSFETs
These are N-Channel enhancement mode silicon gate power field effect transistors designed for applications such as switching regulators, switching converters, motor drivers, relay drivers and drivers for high power bipolar switching transistors requiring high speed and low gate drive power.
These types can be operated directly from integrated circuits.
Formerly developmental type TA0522.
Features
• 15A, 50V and 60V
• rDSON= 0.140Ω
• Design Optimized for 5V Gate Drives
• Can be Driven from QMOS, NMOS, TTL Circuits
• Compatible with Automotive Drive Requirements
• SOA is Power Dissipation Limited
• Nanosecond Switching Speeds
• Linear Transfer Characteristics
• High Input Impedance
• Majority Carrier Device
• Related Literature
\- TB334 “Guidelines for Soldering Surface Mount Components to PC Boards”
额定电压DC 50.0 V
额定电流 15.0 A
漏源极电阻 140 mΩ
极性 N-Channel
耗散功率 60W Tc
漏源极电压Vds 50 V
漏源击穿电压 50.0 V
栅源击穿电压 ±10.0 V
连续漏极电流Ids 15.0 A
输入电容Ciss 900pF @25VVds
耗散功率Max 60W Tc
安装方式 Through Hole

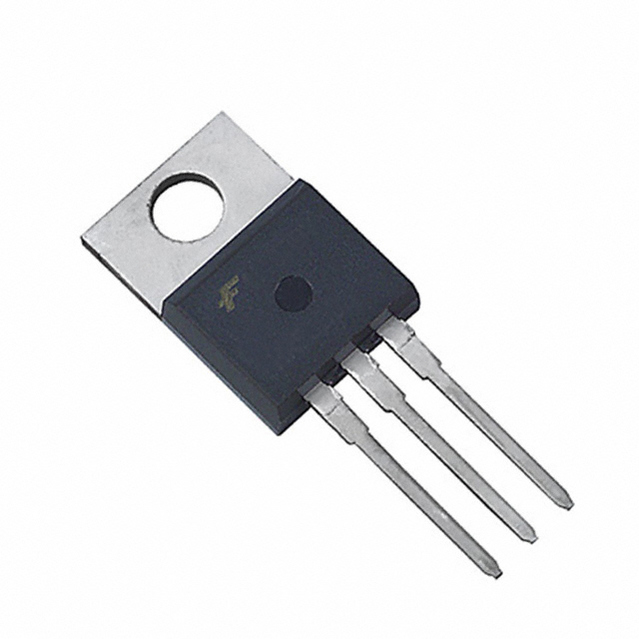

封装 TO-220-3
封装 TO-220-3
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Unknown
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
RFP15N05L Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
RFP50N06 飞兆/仙童 | 功能相似 | RFP15N05L和RFP50N06的区别 |
RFP12N10L 飞兆/仙童 | 功能相似 | RFP15N05L和RFP12N10L的区别 |
RFP70N06 飞兆/仙童 | 功能相似 | RFP15N05L和RFP70N06的区别 |
